How to Replace the Steam Wand



Youtube video


In this video, we'll show you how to replace the steam wand.

This video is part of a series that we produce, helping our users self-repair their Decent Espresso Machine.

  • Only do this repair in consultation with Decent tech support
  • Doing otherwise might break your machine or void your warranty.

Chapters:

  1. 00:03 Tools
  2. 00:08 Power Disconnection
  3. 00:28 Remove External Components
  4. 01:10 Remove the Main Cover
  5. 01:32 Remove the Old Steam Wand
  6. 01:50 Remove the Clip that Secures the Steam Tube
  7. 02:11 Mount the New Steam Wand
  8. 02:50 Re-install the Clip
  9. 02:58 Contact us with questions

Instructions on How to Replace the Steam Wand

Tools required

  • T10 Torx screwdriver
  • PH2 Phillips head screwdriver
  • Two adjustable wrenches, or 25 mm and 26 mm wrenches
  • Angled, pointy-tip tweezers

Step 1: Power Disconnection

For DE1XL or DE1XXL Models:
  1. Remove the back panel.
  2. Turn off the machine's back switch.
  3. Unplug the power cord.
For DE1PRO and DE1PLUS Models:
  1. Turn off the machine's back switch.
  2. Unplug the power cord.

Step 2: Remove External Components

For Version 1.43 or Higher (Slide-in Tablet Stand):
  1. Unplug the USB cable.
  2. Gently pull the tablet stand out.
For Version 1.3 to 1.42 (Screwed-in Tablet Stand):
  1. Unscrew the screws holding the tablet stand.
  2. Remove the stand.

Then…

  1. Remove the drip tray.
  2. Remove the drip tray cover.
  3. Lift the lever on the back of the machine.
  4. Slide the water tank out and remove it.
  5. Remove the portafilter.
  6. Remove the group head handle.

Step 3: Remove the Main Cover

  1. Use a T10 screwdriver to remove the 8 screws securing the main cover.
  2. Gently stretch the sides of the cover outward.
  3. Lift the cover off the machine.

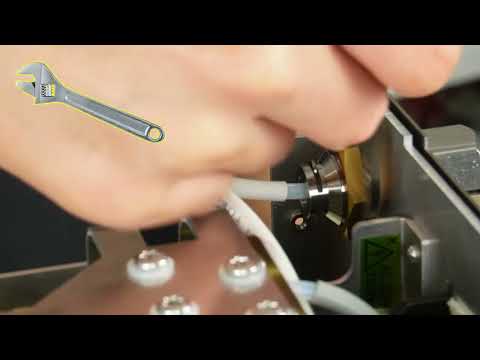

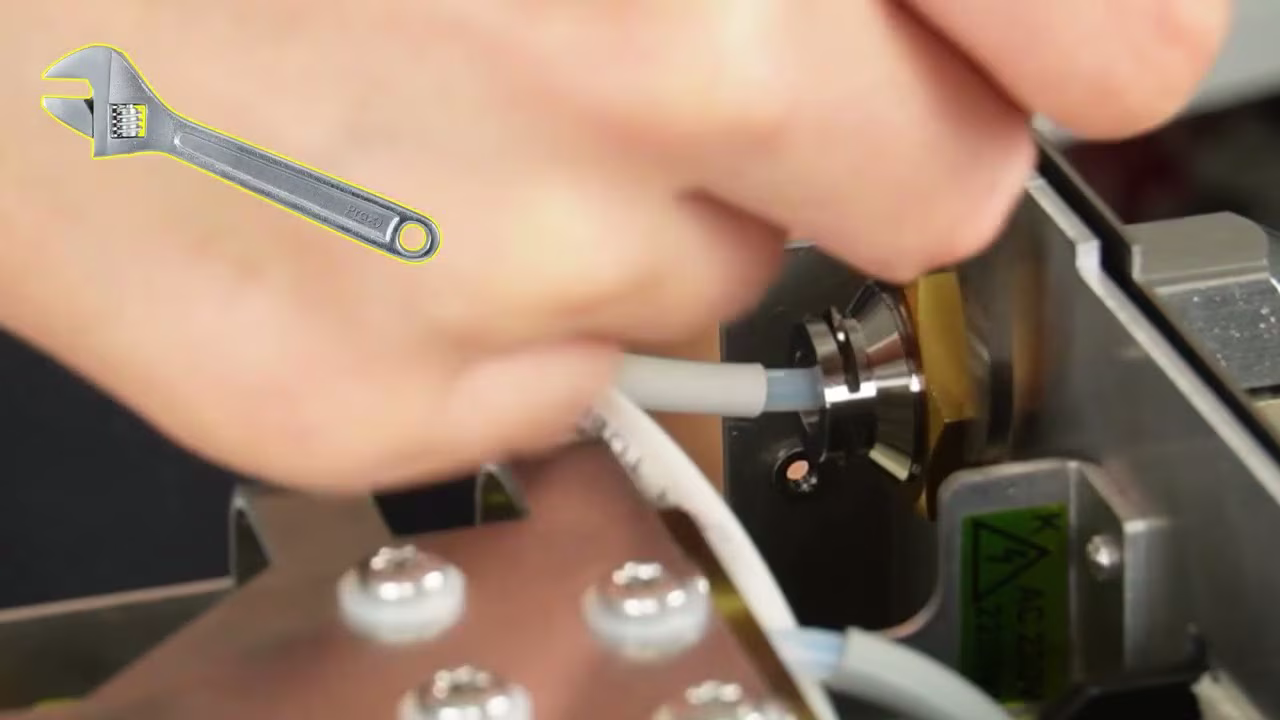

Step 4: Remove the Steam Wand

  1. Hold the inside nut with an adjustable wrench or a 25 mm wrench.
  2. Hold the outside nut with another adjustable wrench or a 26 mm wrench.
  3. Loosen the nuts.
  4. Remove the clip securing the steam tube inside the machine.
  5. Pull the steam tube out.
  6. While holding the outside nut, unscrew the inside nut by hand.
  7. Pull the steam wand out from the outside of the machine.
  8. Remove the white spacer remaining inside the machine.

Step 5: Mount the New Steam Wand

  1. Unscrew the brass nut from the new steam wand.
  2. Remove the white spacer.
  3. Insert the steam wand through the hole.
  4. Place the white spacer back inside the machine.
  5. Screw the brass nut on by hand.
  6. Install a new O-ring onto the end of the steam tube.
  7. Push the O-ring in until it reaches the brass ring.
  8. Insert the tube into its connector using a gentle circular motion.
  9. Turn the outside nut to align the clip slot vertically.
  10. Reinstall the clip.
  11. Use two wrenches to tighten the inside nut fully.

Step 6: Final Check

  • Should any questions or problems arise during the process, contact our online tech support.
