How to Replace the Leg Base

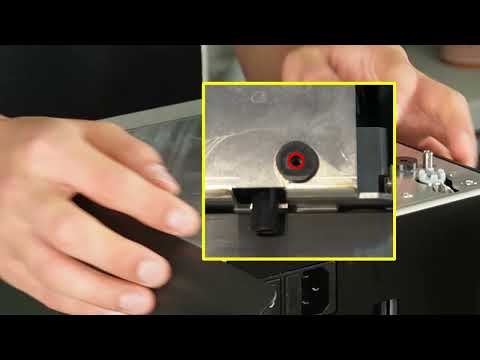

Youtube video


In this video, we'll show you how to replace the leg base.

This video is part of a series that we produce, helping our users self-repair their Decent Espresso Machine.

  • Only do this repair in consultation with Decent tech support
  • Doing otherwise might break your machine or void your warranty.

Chapters:

  1. 00:03 Tools
  2. 00:09 Power Disconnection
  3. 00:29 Remove External Components
  4. 01:11 Place a cloth on the countertop
  5. 01:15 Turn the steam wand in a horizontal position
  6. 01:23 Turn the machine upside down
  7. 01:35 Unscrew the leg base
  8. 01:51 Remove the leg base
  9. 01:54 Mount the new leg base
  10. 02:16 Re-insert the screws
  11. 02:36 Turn the machine back
  12. 02:46 Contact us with questions

Instructions on How to Replace the Leg Base

Tools required

  • T10 Torx screwdriver
  • PH2 Phillips head screwdriver or T20 Torx screwdriver

Step 1: Power Disconnection

For DE1XL or DE1XXL Models:

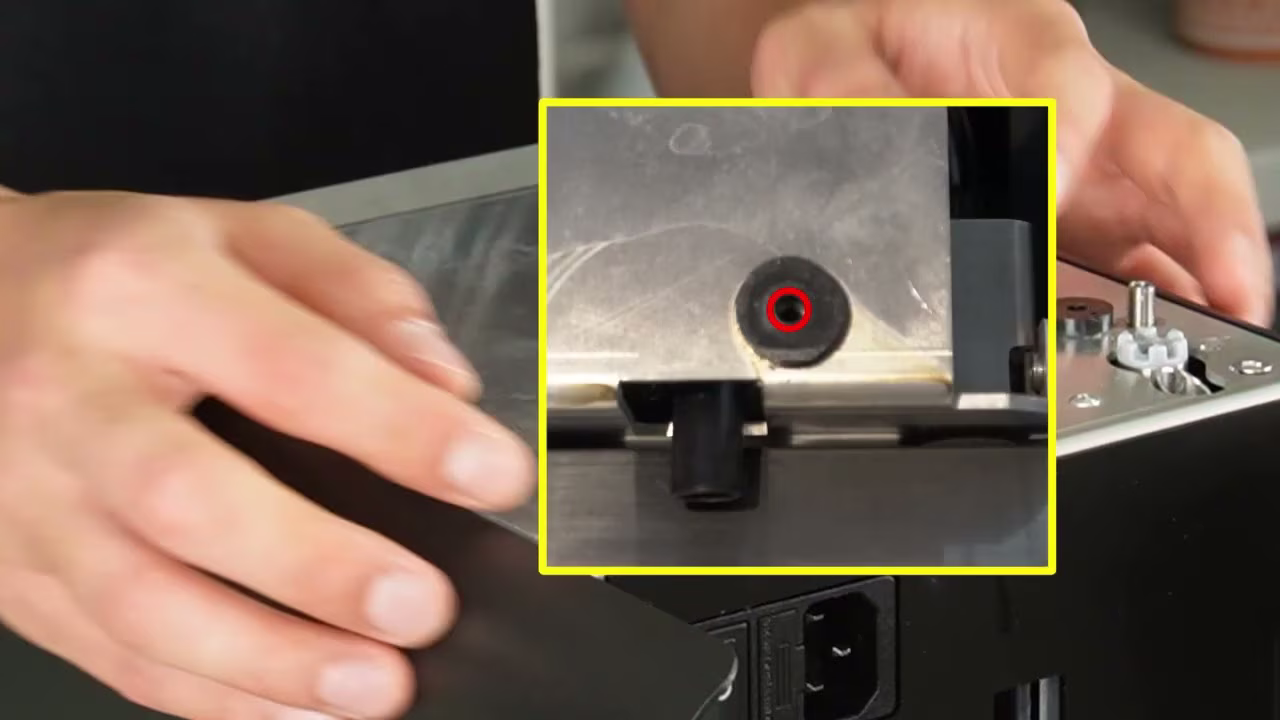

  1. Remove the back panel.
  2. Turn off the machine's back switch.
  3. Unplug the power cord.
For DE1PRO and DE1PLUS Models:
  1. Turn off the machine's back switch.
  2. Unplug the power cord.

Step 2: Remove External Components

For v1.43 or Higher (Slide-in Tablet Stand):
  1. Unplug the USB cable.
  2. Gently pull the tablet stand out.
For v1.3 to 1.42 (Screwed-in Tablet Stand):
  1. Unscrew the three screws holding the tablet stand.
  2. Remove the stand.

Then…

  1. Remove the drip tray.
  2. Remove the drip tray cover.
  3. Lift the lever on the back of the machine.
  4. Slide the water tank out and remove it.
  5. Remove the portafilter.
  6. Remove the group head handle.

Step 3: Turn the Machine Upside Down

  2. Place a cloth on the countertop to protect the machine's cover.
  3. Rotate the steam wand to a horizontal position to prevent it from hitting the countertop when the machine is turned over.
  4. Hold one of the machine's legs with one hand.
  5. Support the top cover with the other hand.
  6. Carefully flip the machine over and gently place it upside down.

Step 4: Remove the Leg Base

  1. Using a PH2 Phillips or T20 Torx screwdriver (depending on the screw type), remove the four screws securing the leg base.
  2. Remove the leg base.

Step 5: Mount the New Leg Base

  1. Align the four spacers with the screw holes on the bottom chassis of the machine.
  2. Place the leg base onto the spacers, aligning the screw holes as accurately as possible.
  3. Use a T10 Torx screwdriver to help align the three holes if needed.
  4. Reinsert the screws using the appropriate screwdriver.
  5. Tighten the first three screws halfway.
  6. Fully tighten all four screws.

Step 6: Turn the Machine Back Into Its Initial Position

  1. Hold one leg with one hand and support the top of the machine with the other.
  2. Carefully return the machine to the upright position.

Step 7: Final Check

  • If you have any questions, don't hesitate to contact our online tech support
