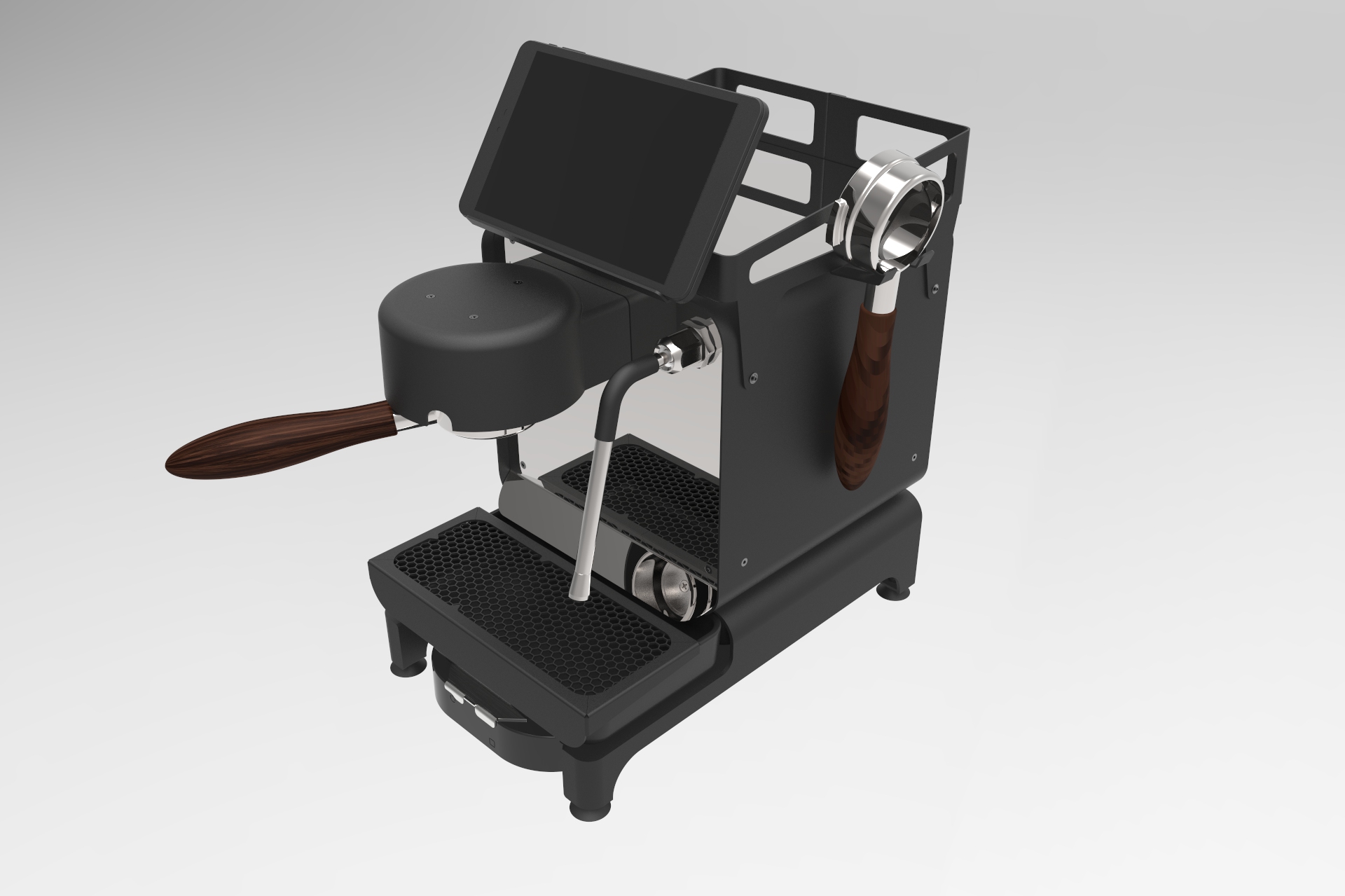

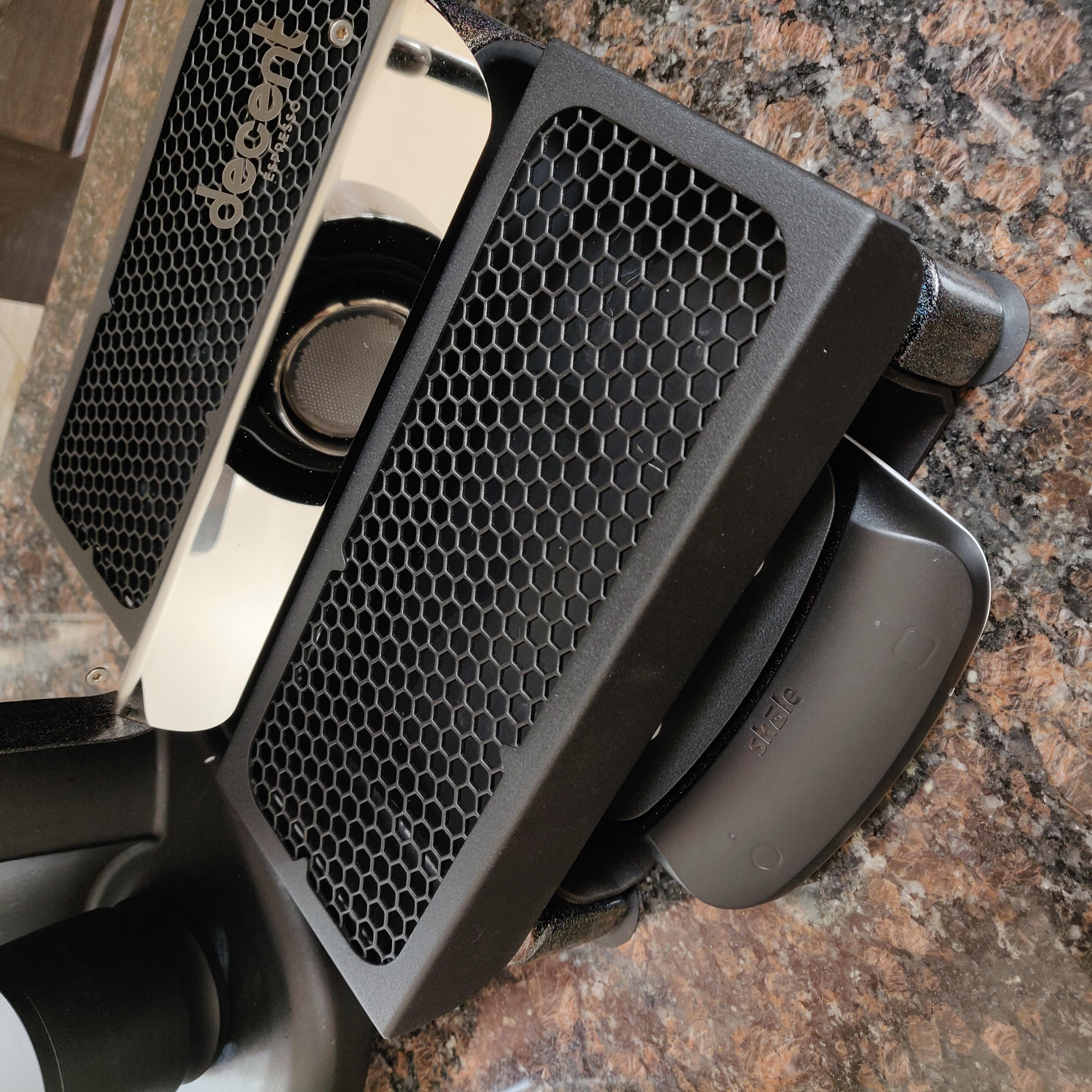

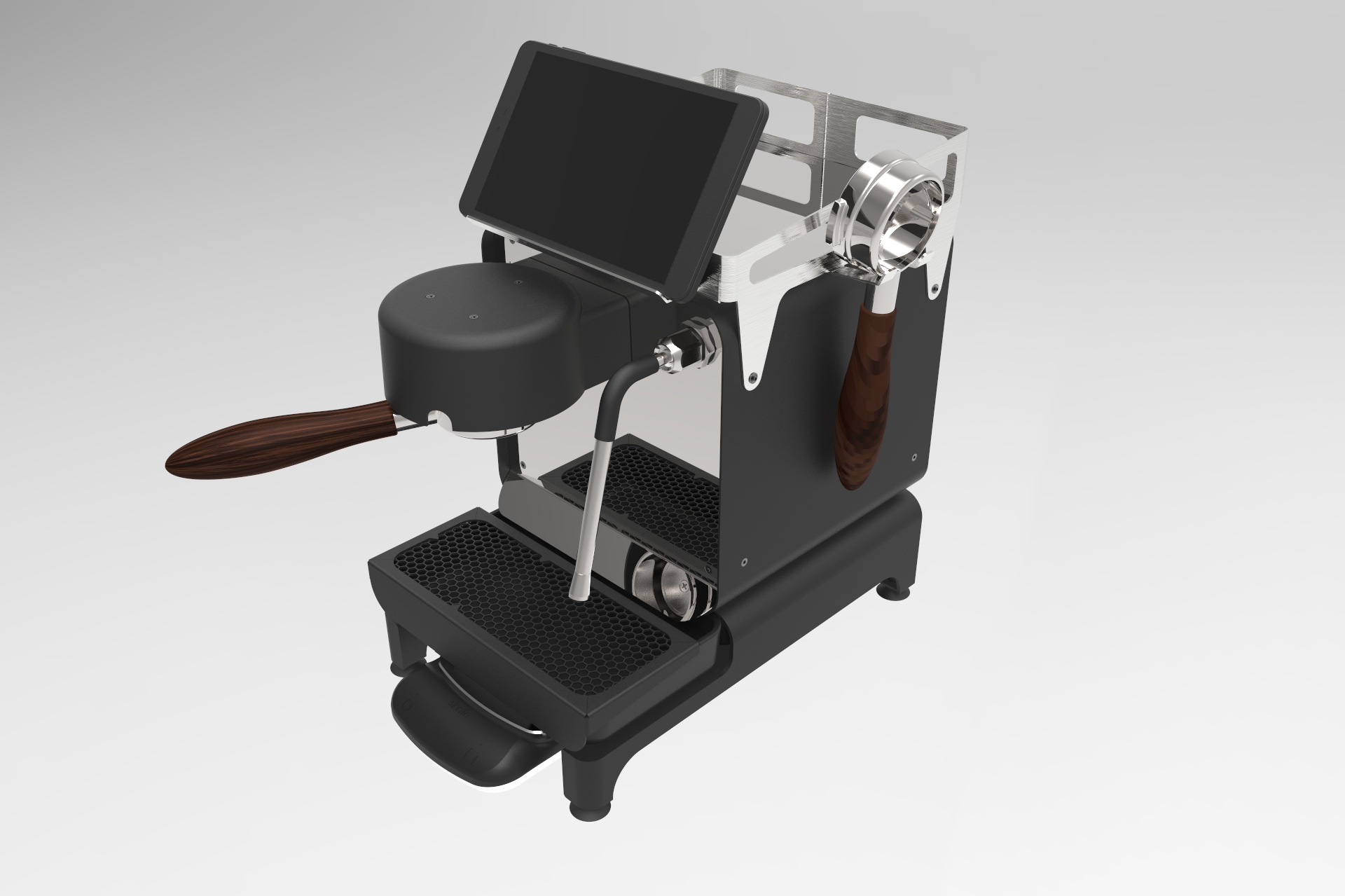

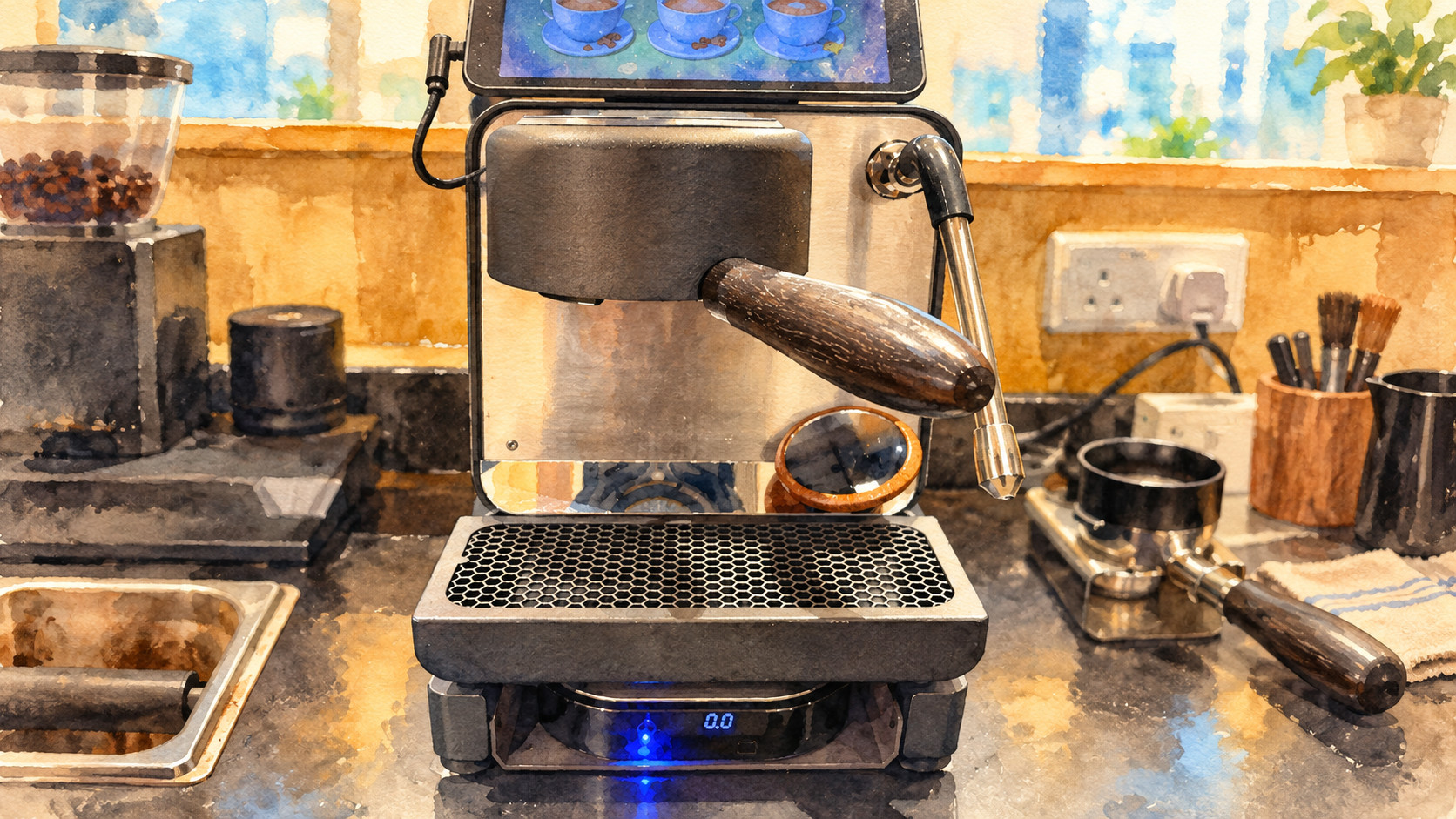

Sheldon Wong created a scale adapter to replace the drip tray of your Decent Espresso machine, and under which you can seat your scale. It is compatible with Atomax Skale, Decent Pill Scale, Acaia Pearl/Lunar and Felicita ARC.
Taking inspiration from Slayer, the design was simplified and mounting provisions added.
If you have any questions or want to find Sheldon's accessories for the Decent, go to https://sworksdesign.com.
Some key details:
Black powder coated steel to match original finish
Adapter plates will be black coated also (not silver like the photos below)
Pointers on drip tray for easier cup alignment
Drip tray designed to work with both Atomax Skale, Acaia Pearl and Decent's scale and the Acaia Pearl

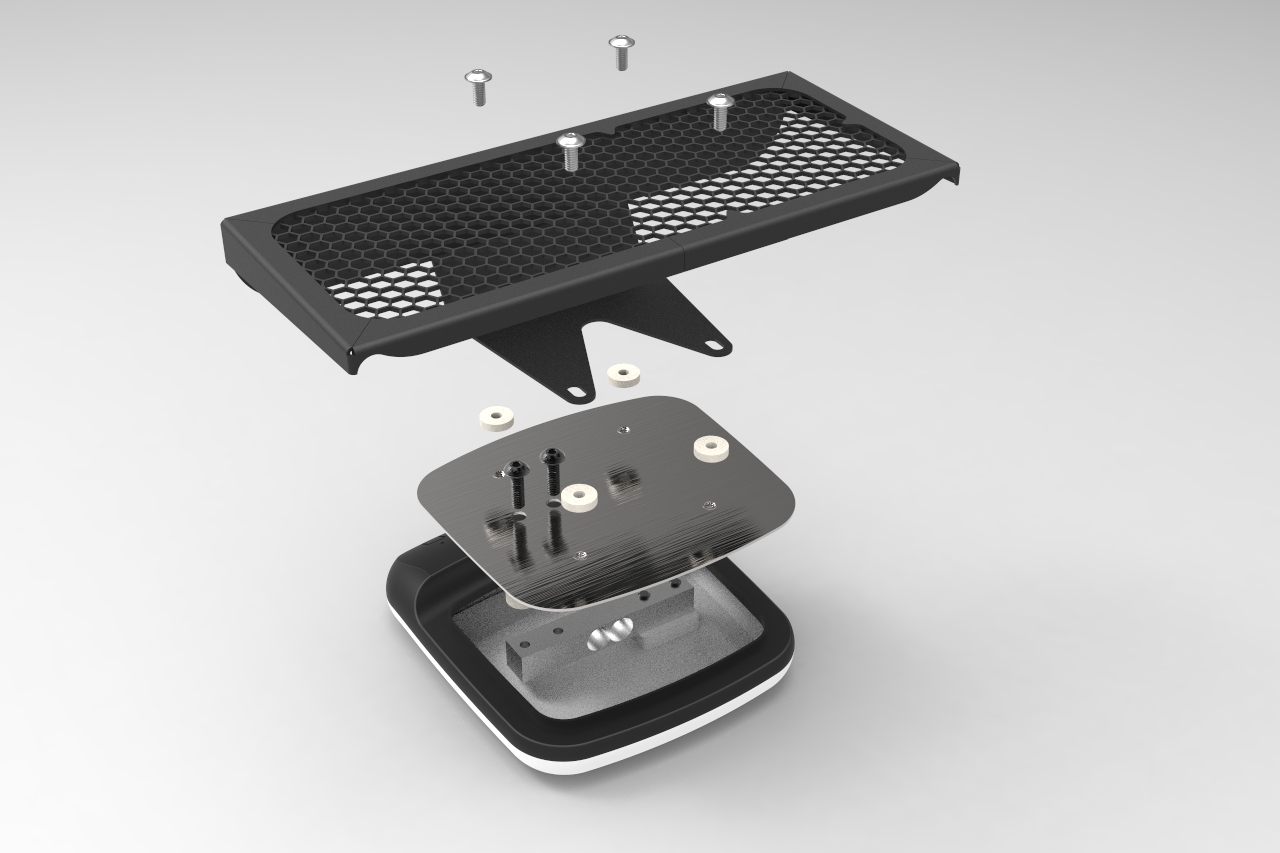

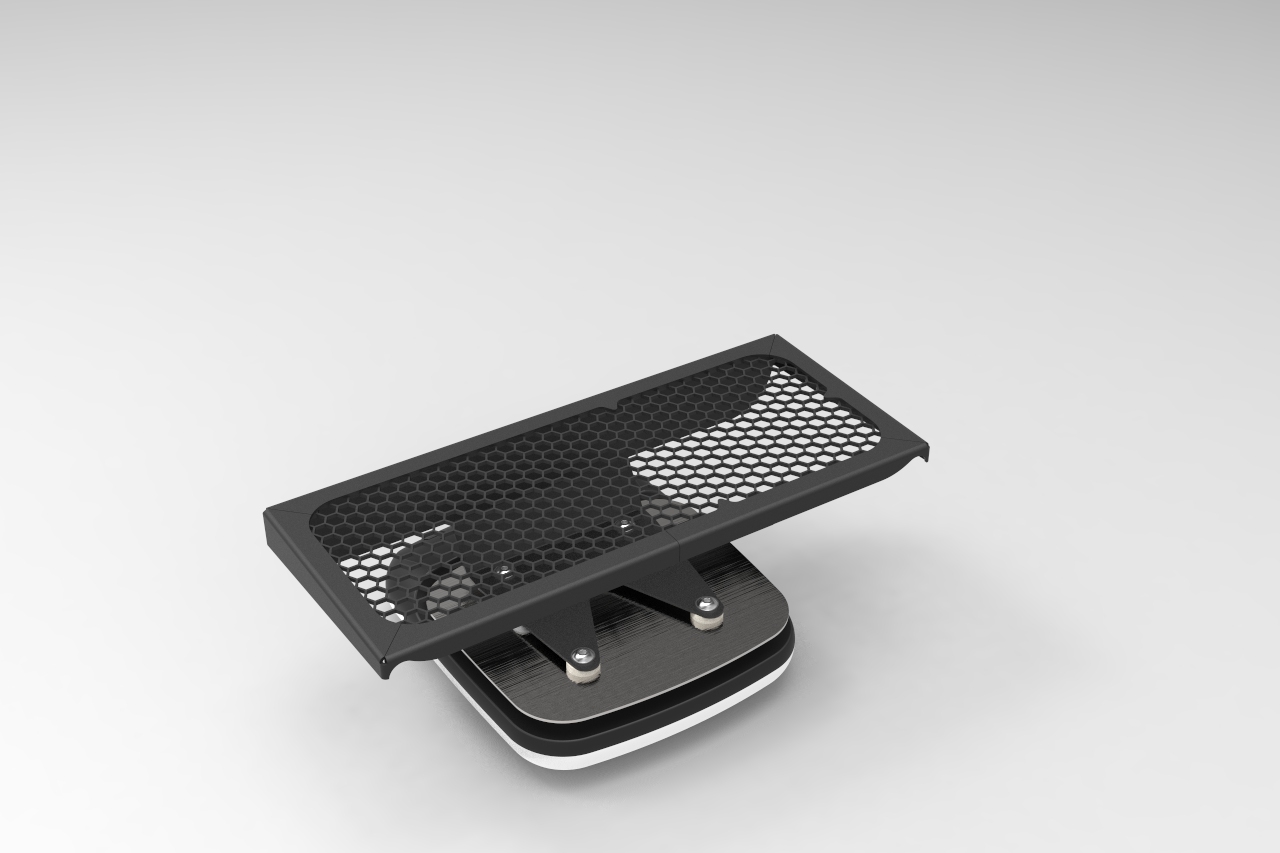

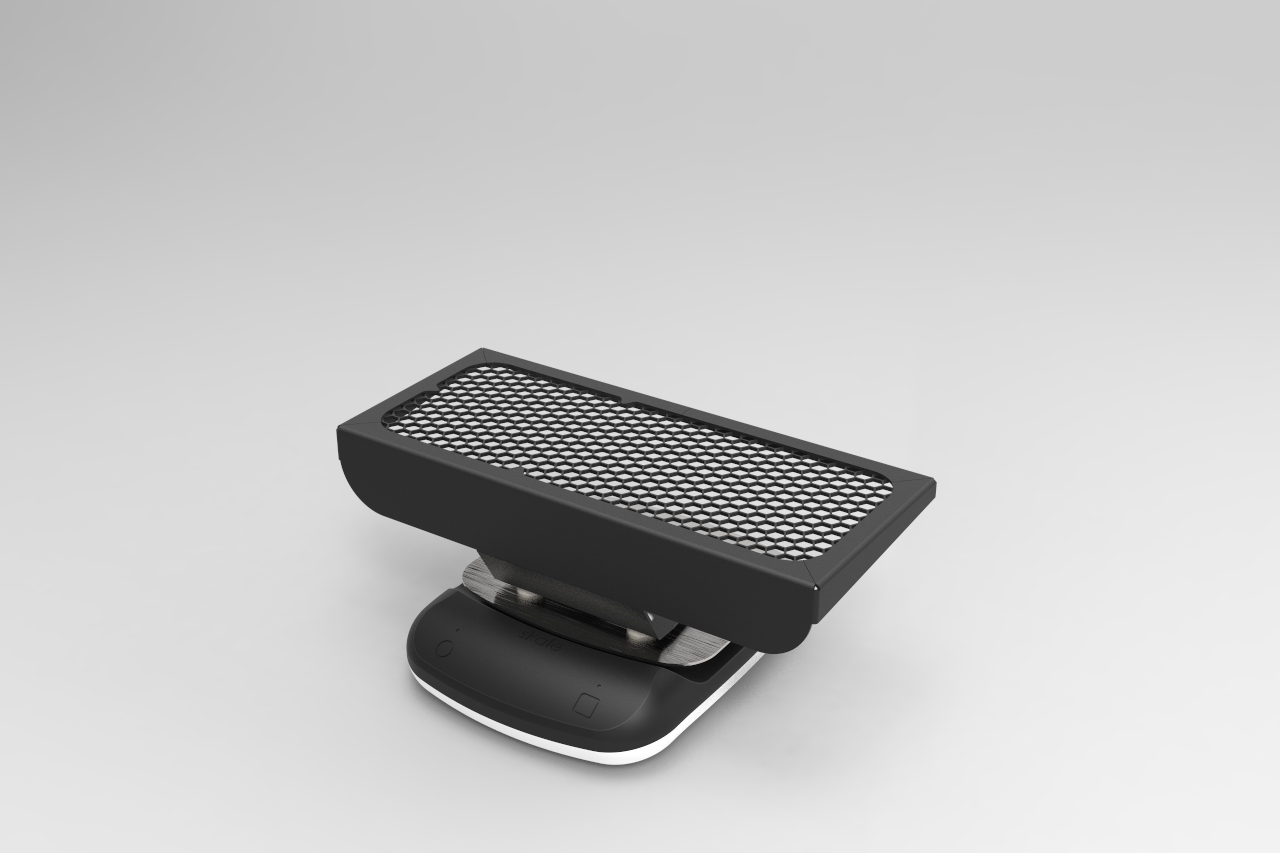

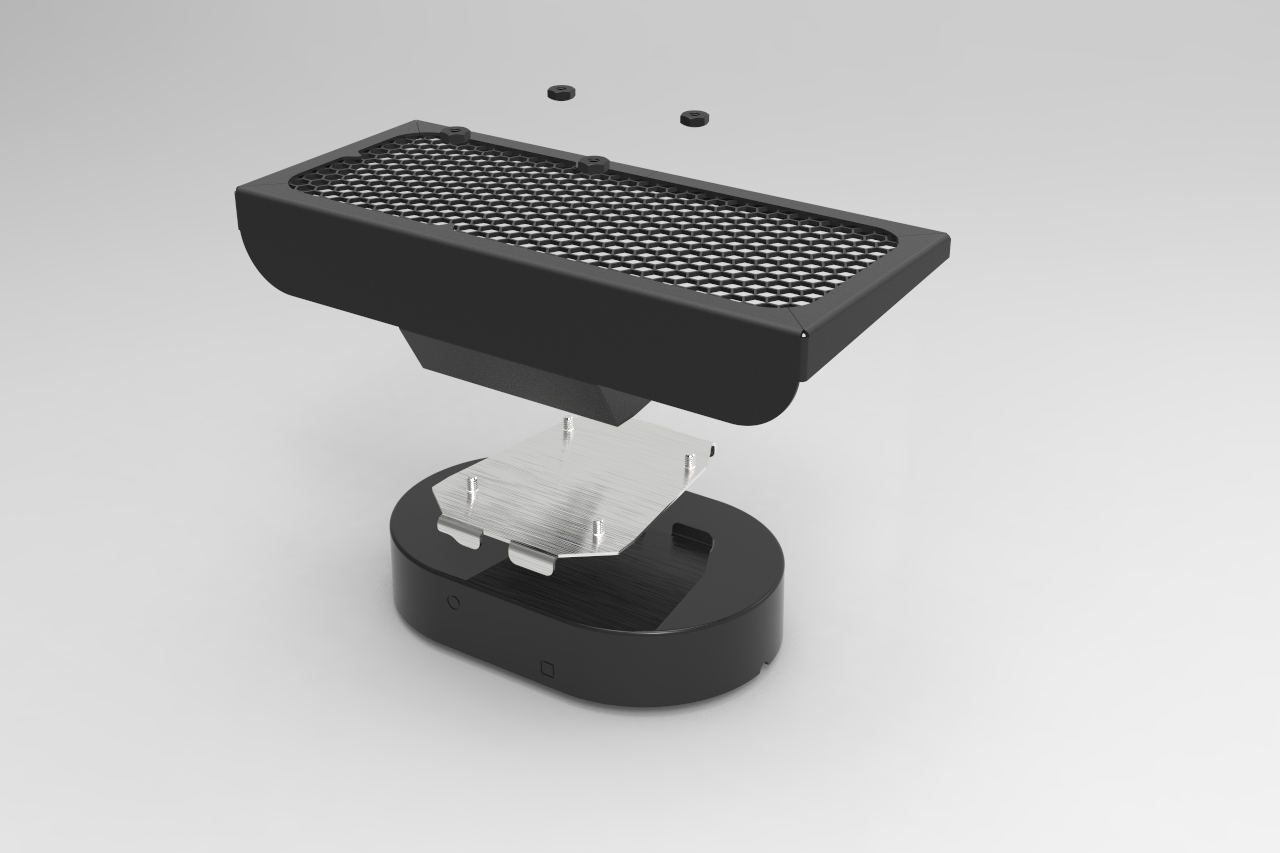

Atomax Skale Specific:

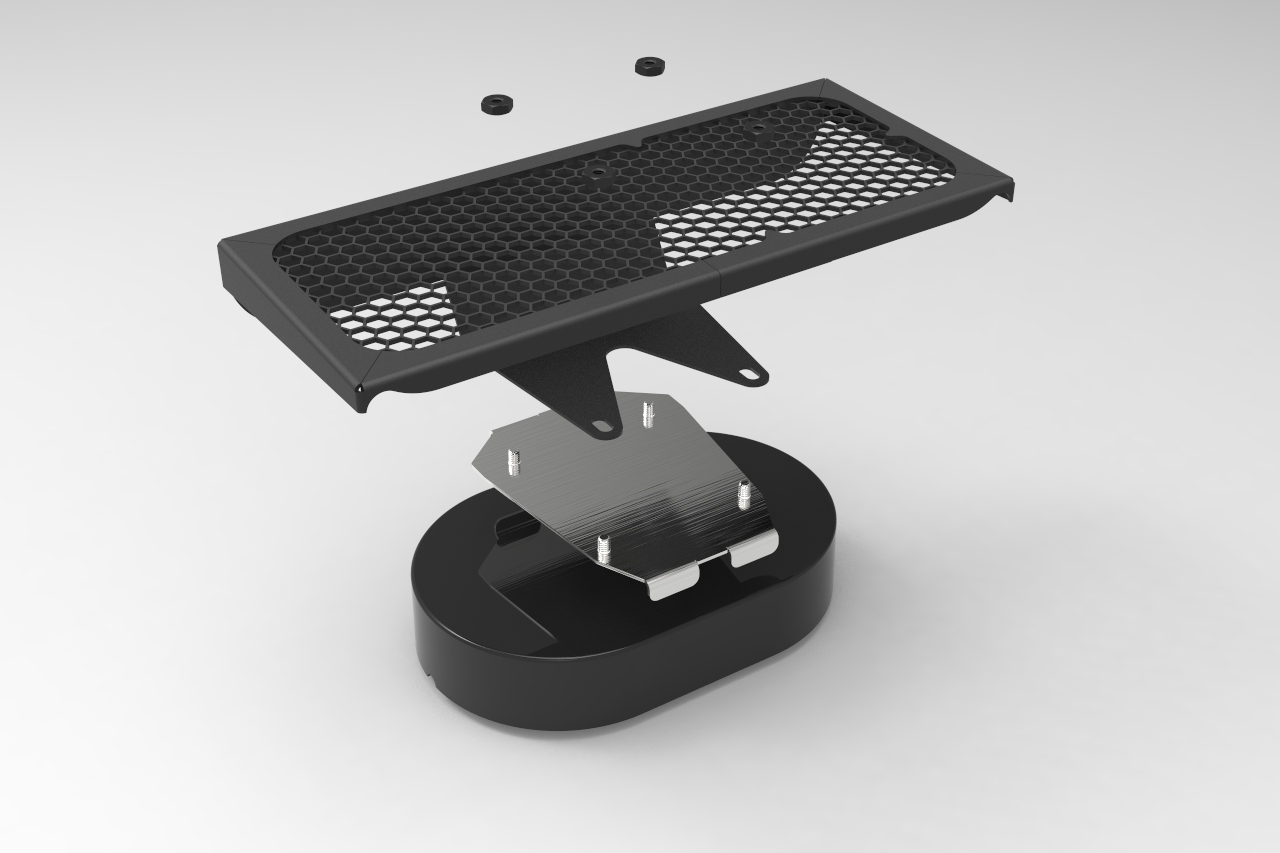

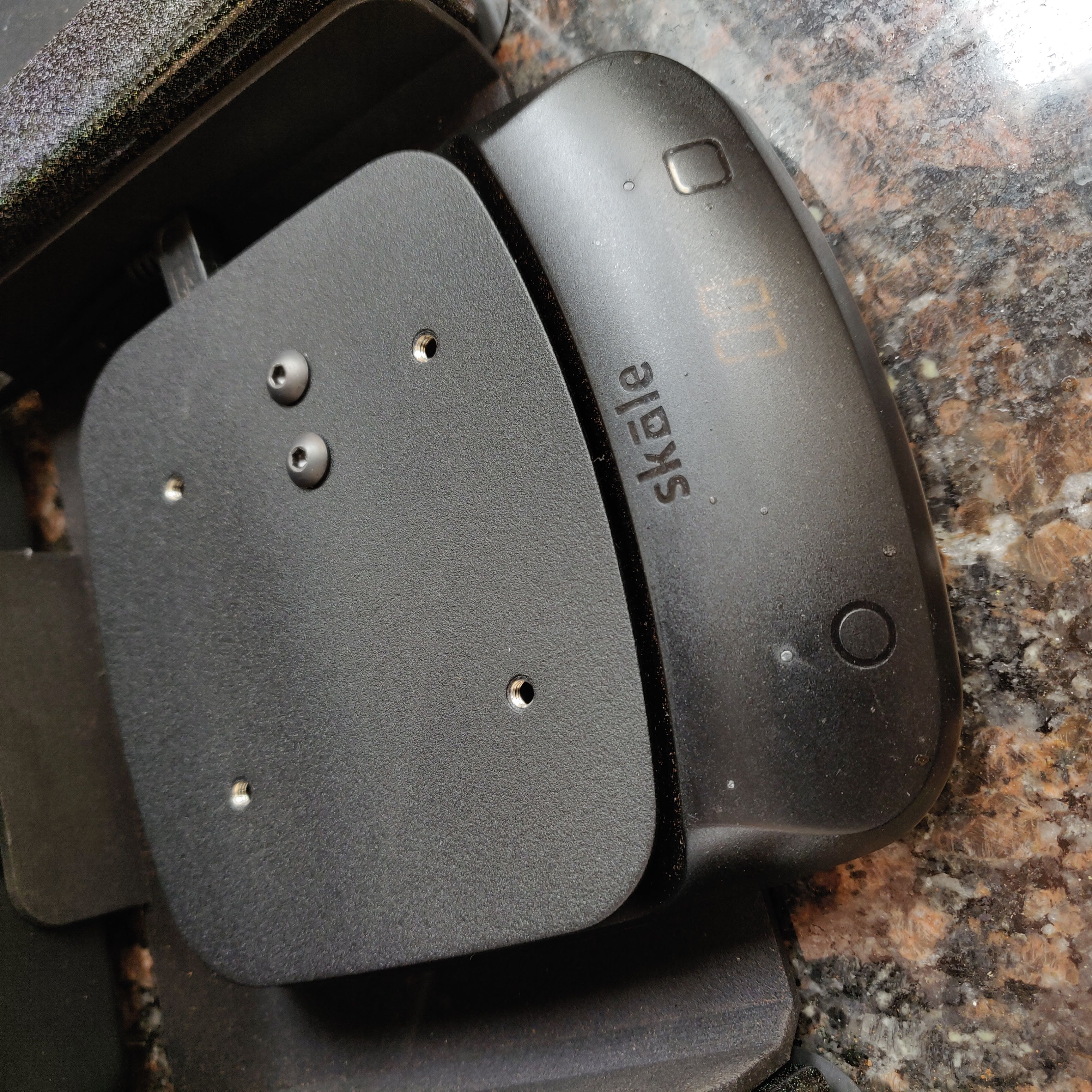

The adapter plate bolts onto the Skale using existing screws

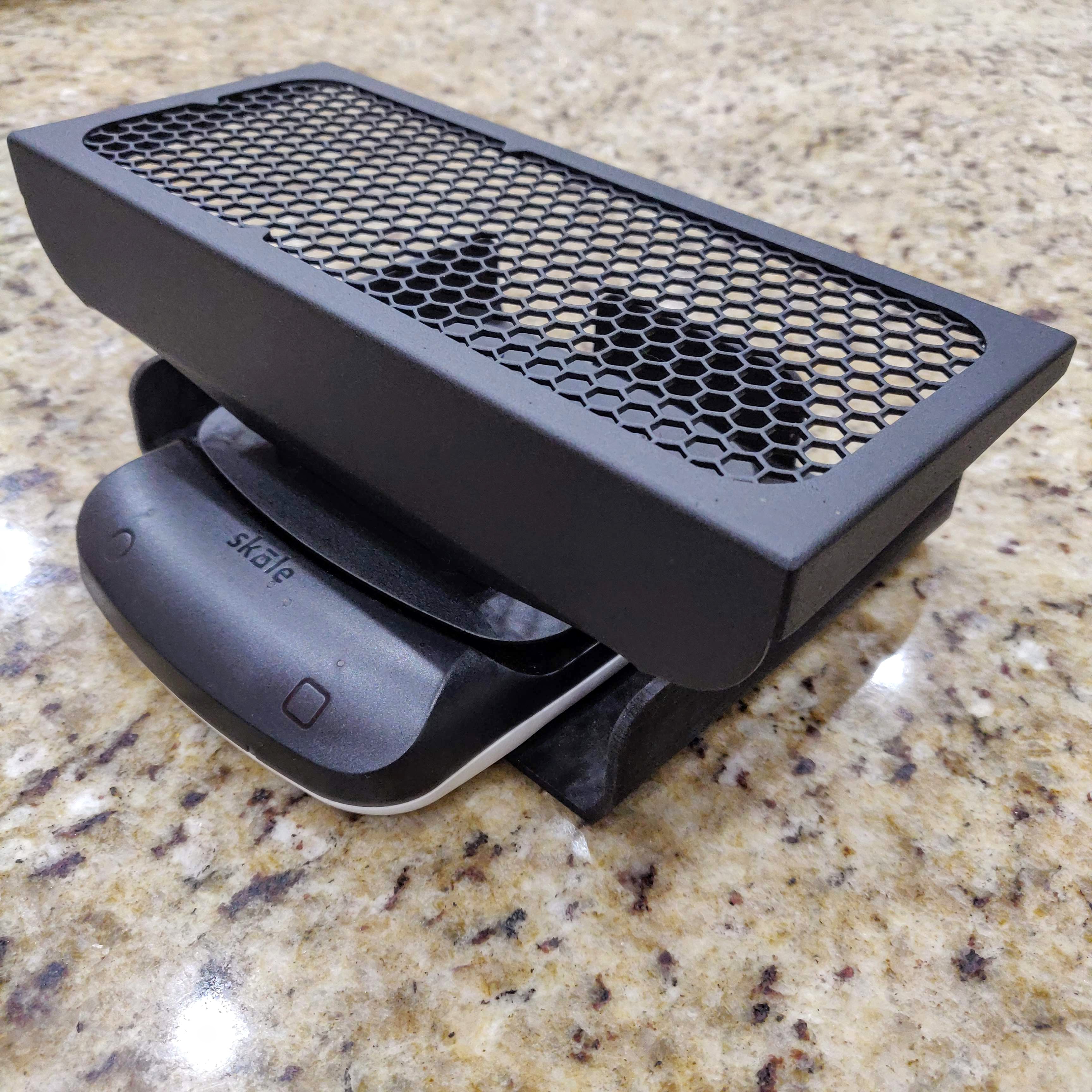

The drip tray bolts onto the adapter plate

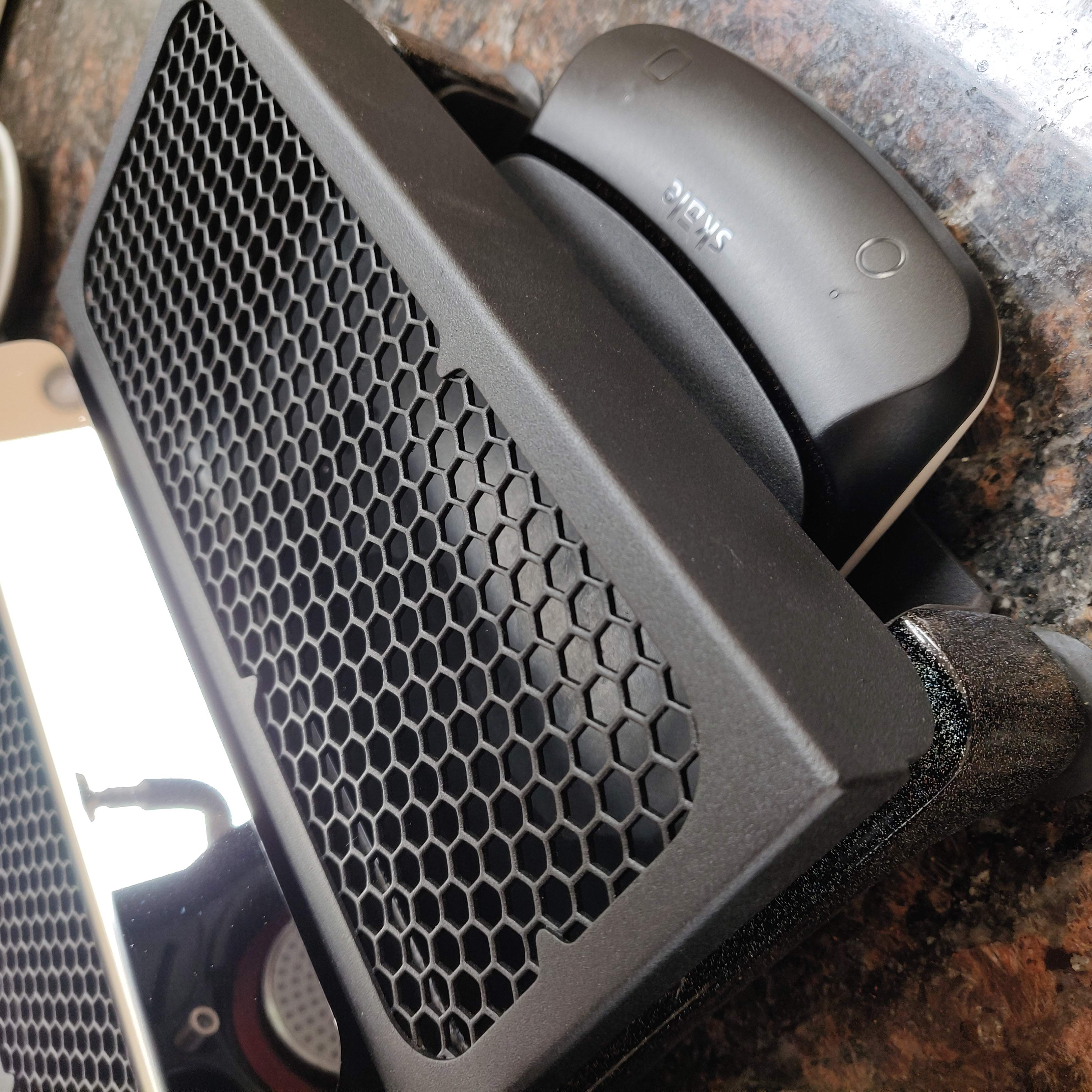

The adapter plate doubles as a splash guard; the electronics would be exposed otherwise

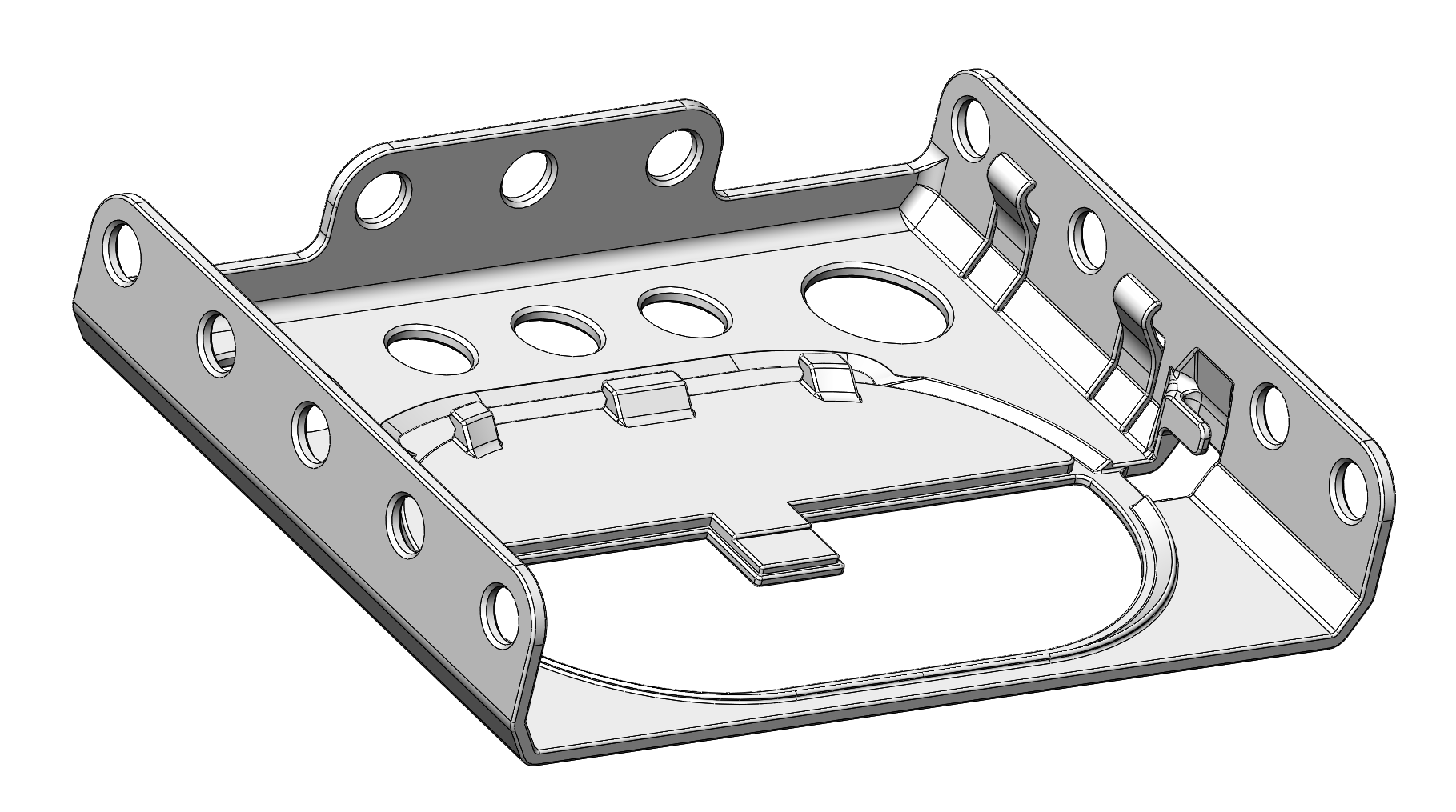

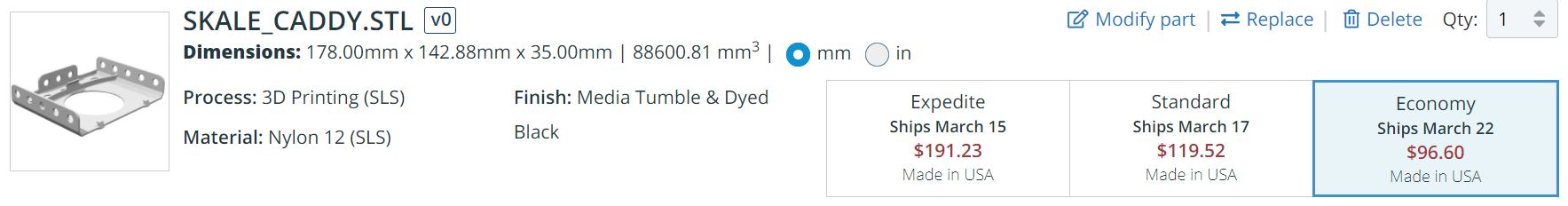

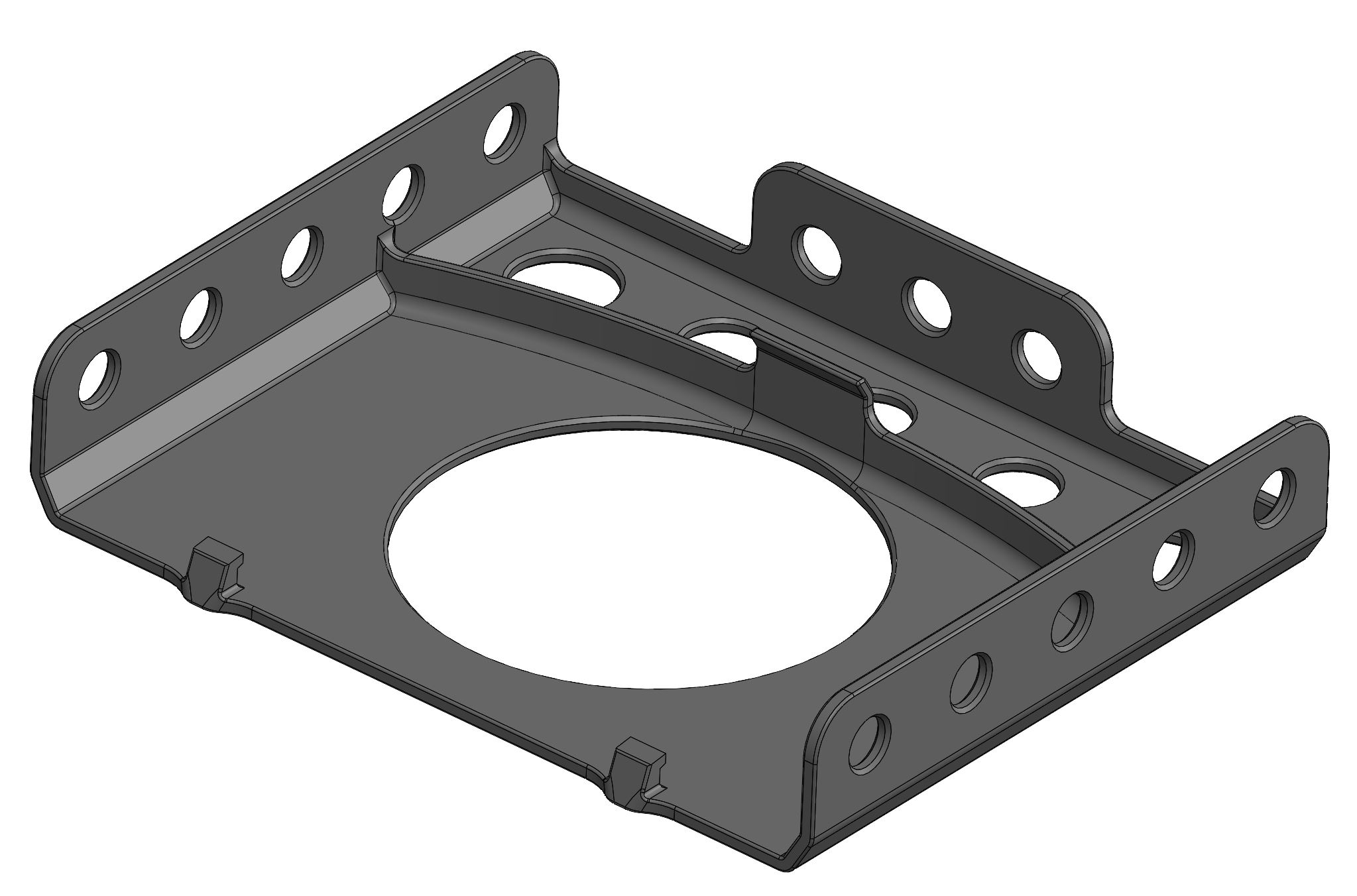

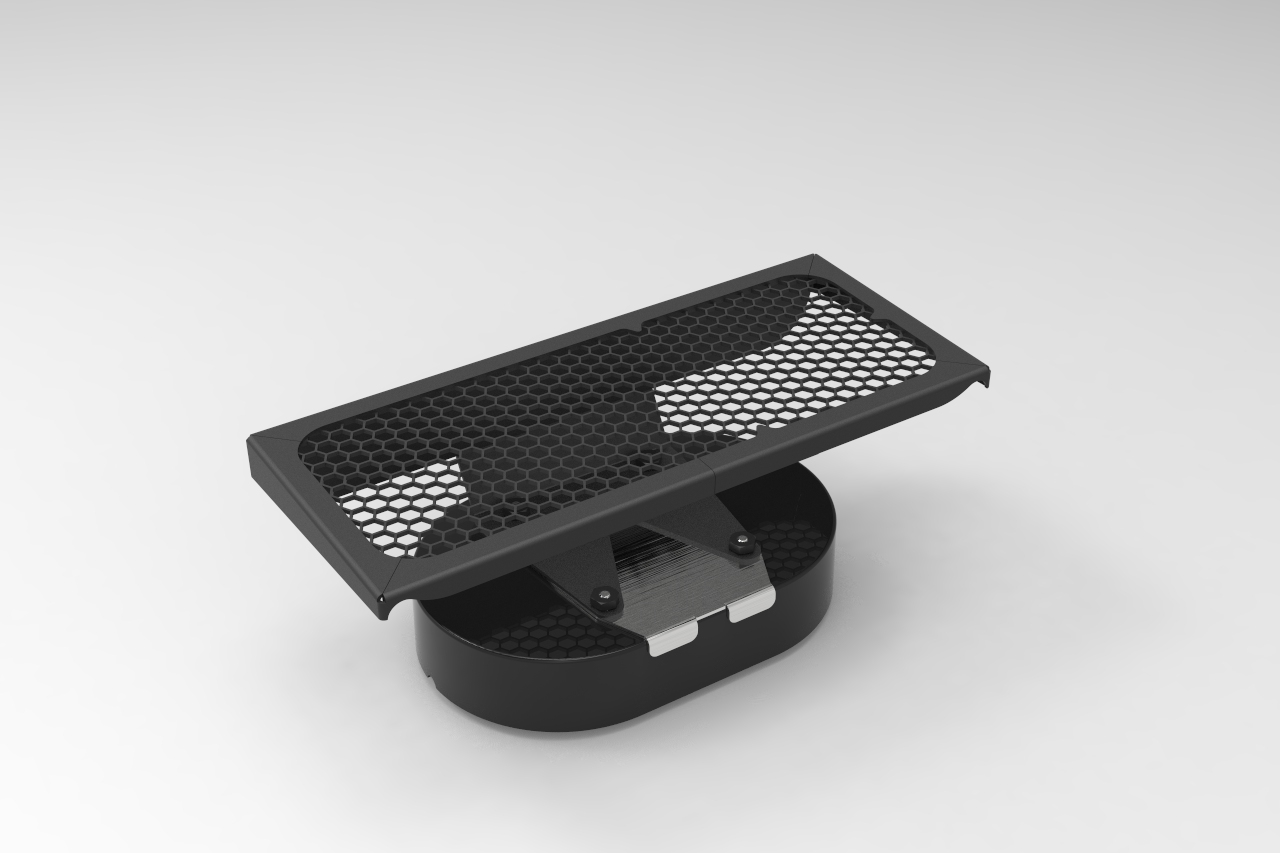

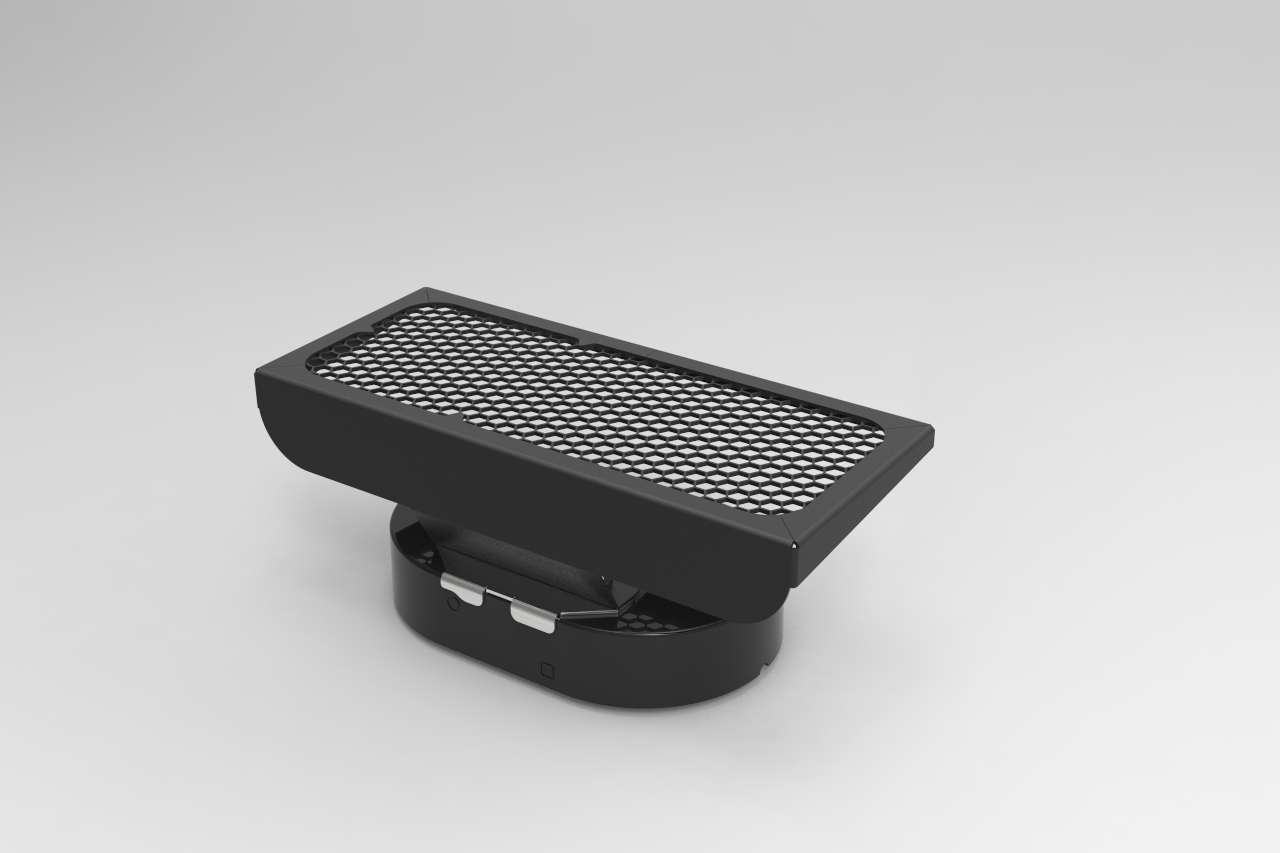

Not required, but it is recommended to use a Skale caddy. Here is a file Sheldon modified from Damian's original design. This model is optimized to be printed using SLS (laser sintered powder).
.STL file of the Skale caddy
Decent Scale Specific:
The adapter plate semi-permanently attaches with double sided tape
The drip tray bolts onto the adapter plate
Tabs on the adapter plate were added to assist in removing the plate

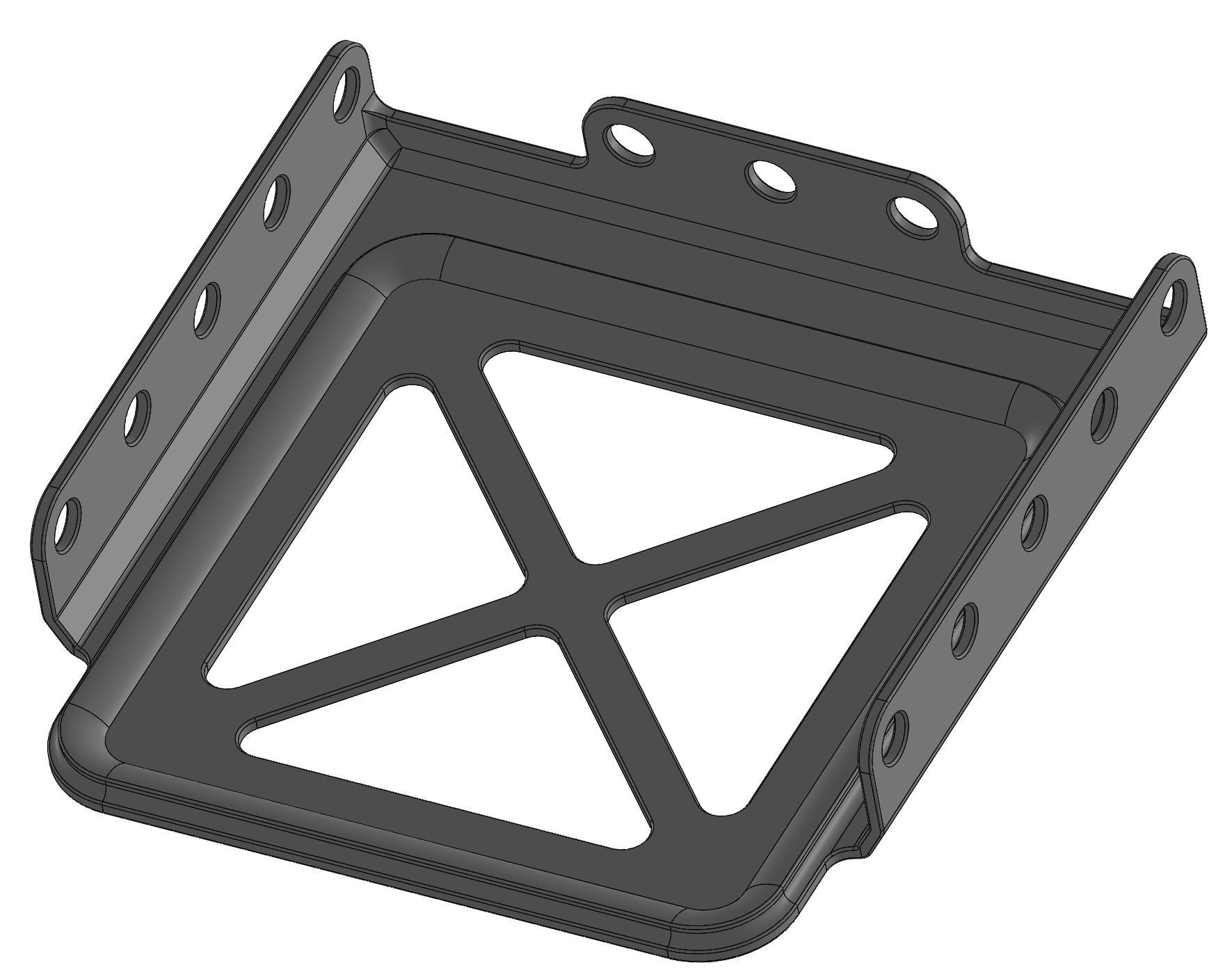

.STL file of the Decent Scale caddy

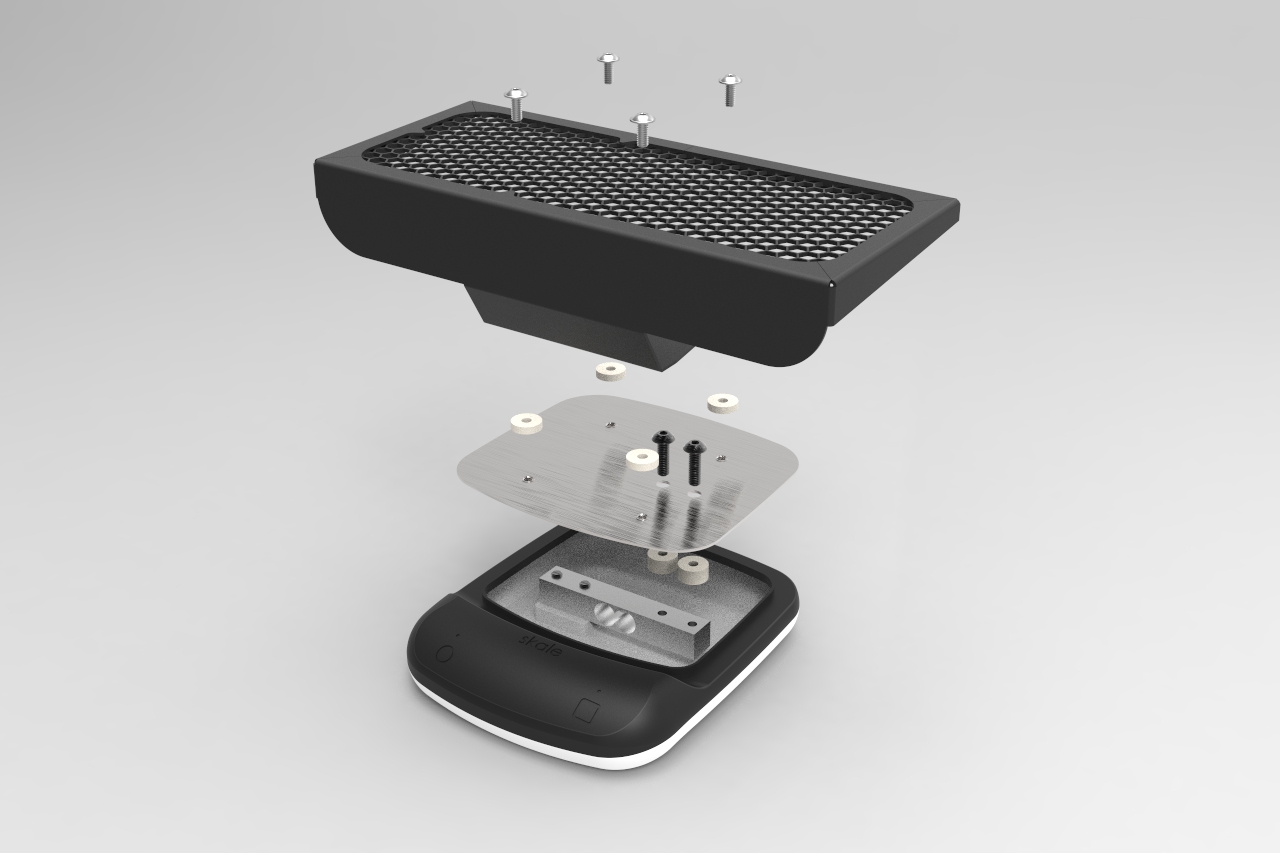

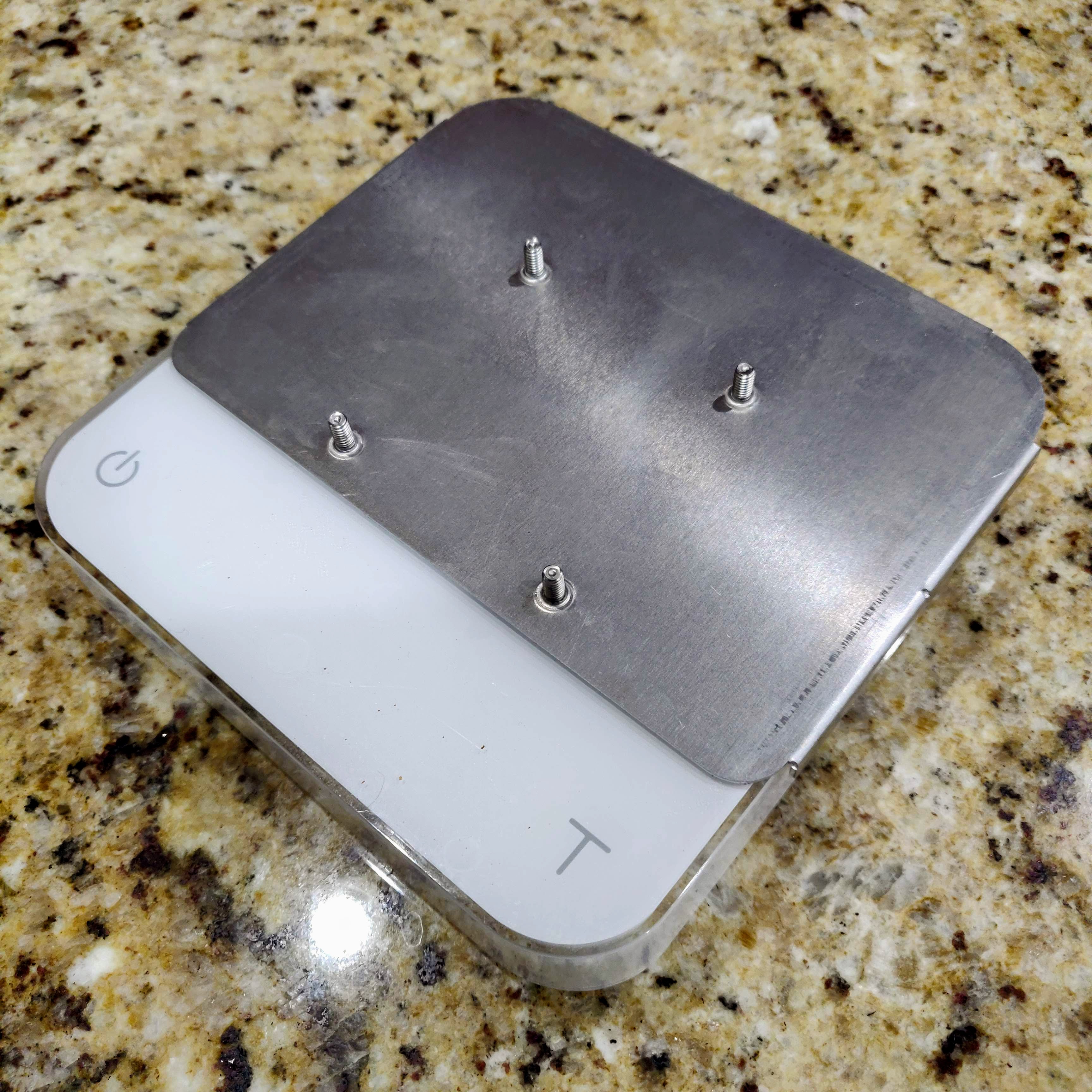

Acaia Pearl Specific:
Acaia Lunar specific:
The adapter plate loosely cups over the Lunar
The drip tray bolts onto the adapter plate
No caddy available
Uncertain longevity of the drip tray resting on the load cell 24/7
