Ben's 3D printed lid

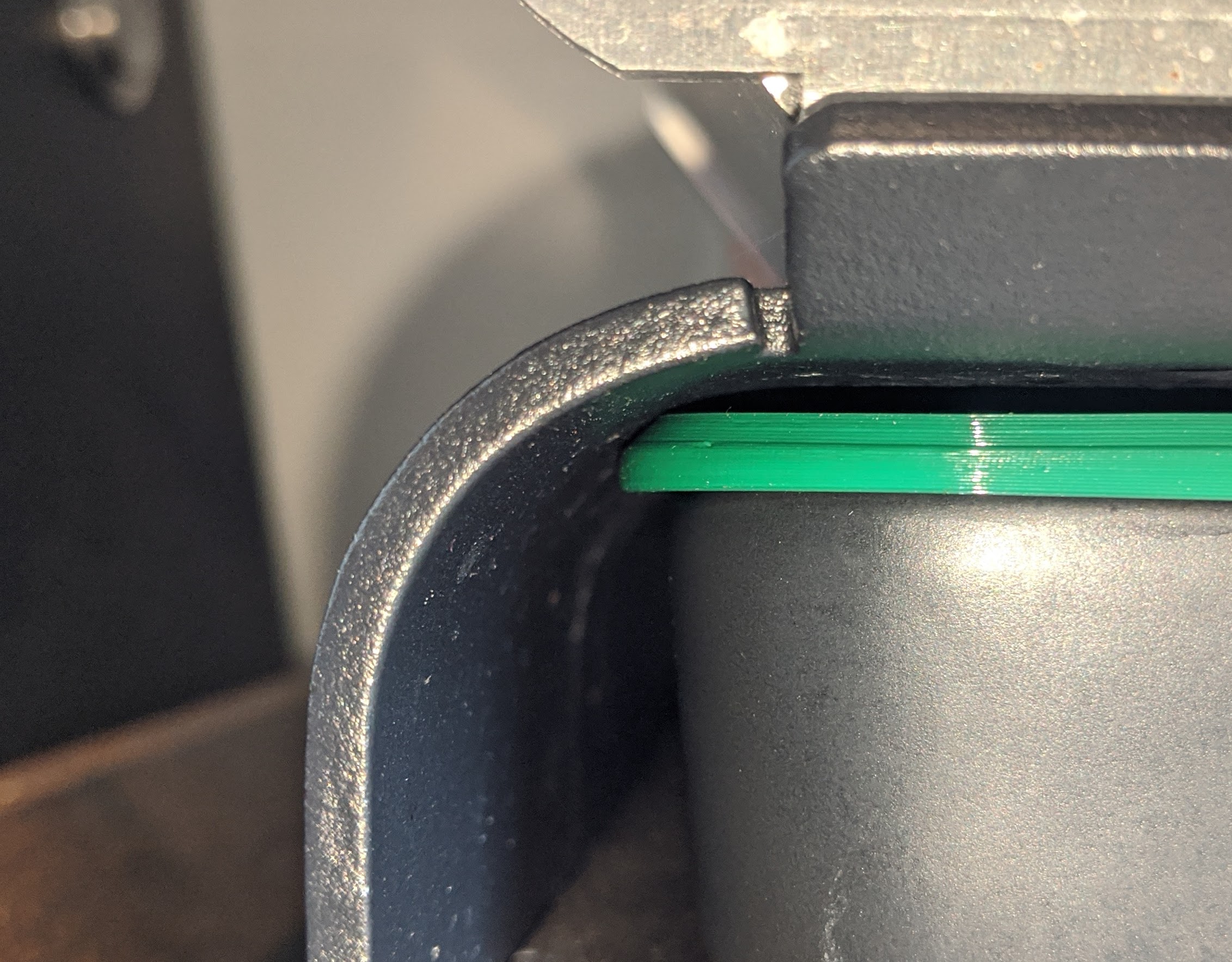

A few people have mentioned wanting a lid for the water tank. There is a slight gap between the metal legs and the ceramic, where bugs can get in.

Here is a design that Ben Champion made, that you can 3D print yourself.

Water tank lid, STEP files

It is a little tricky to print as the corners can lift off the print bed. This design is correctly sized for Ben's water tank, but there is a bit of variation in the ceramic water tank so its possible that you need to scale it slightly to suit a bigger water tank.

NO 3D PRINTED PLASTIC IS 100% FOOD SAFE. Water droplets will form on it and fall back into the tank so we don't suggest you use this unless you understand the risks.

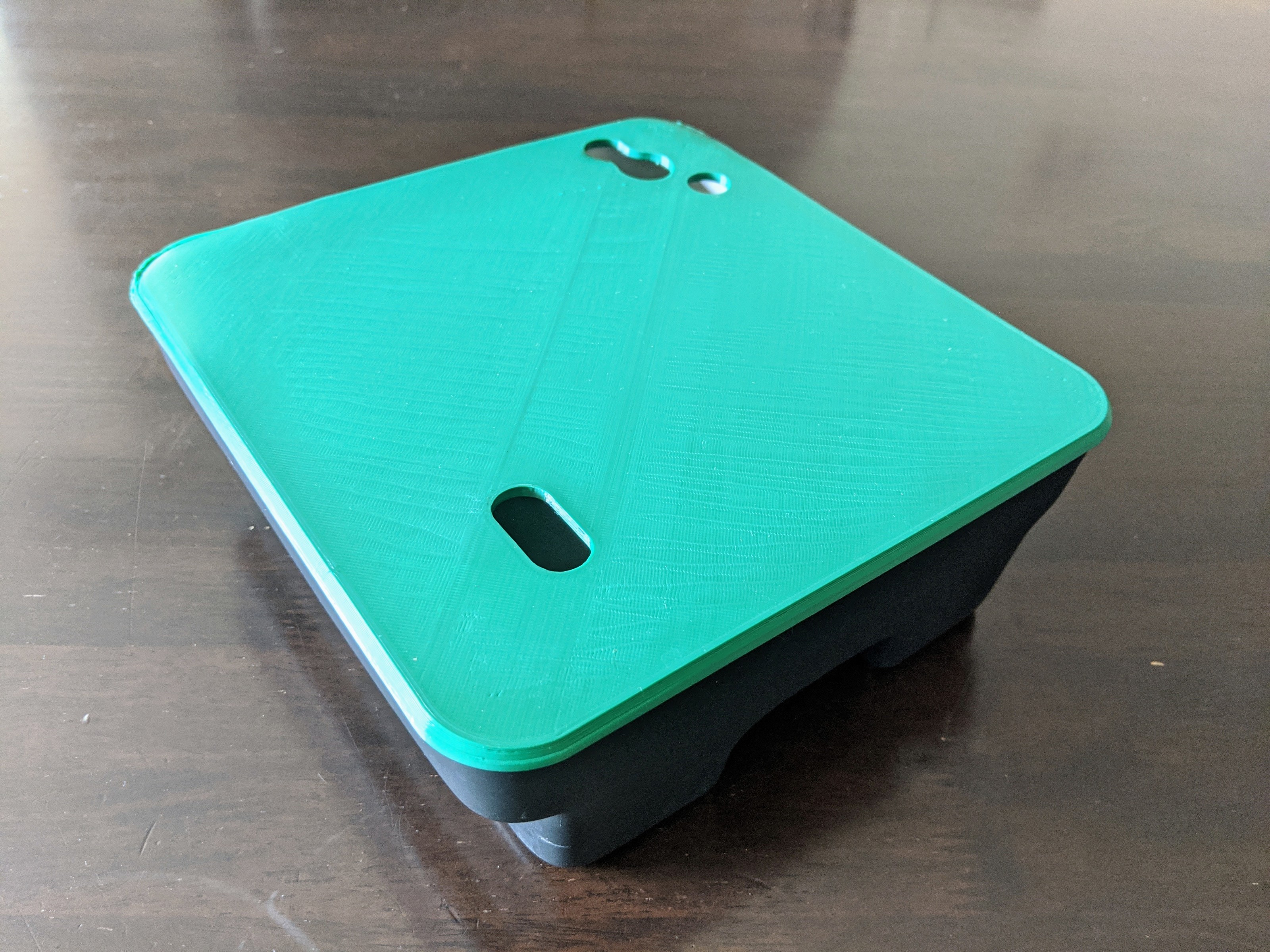

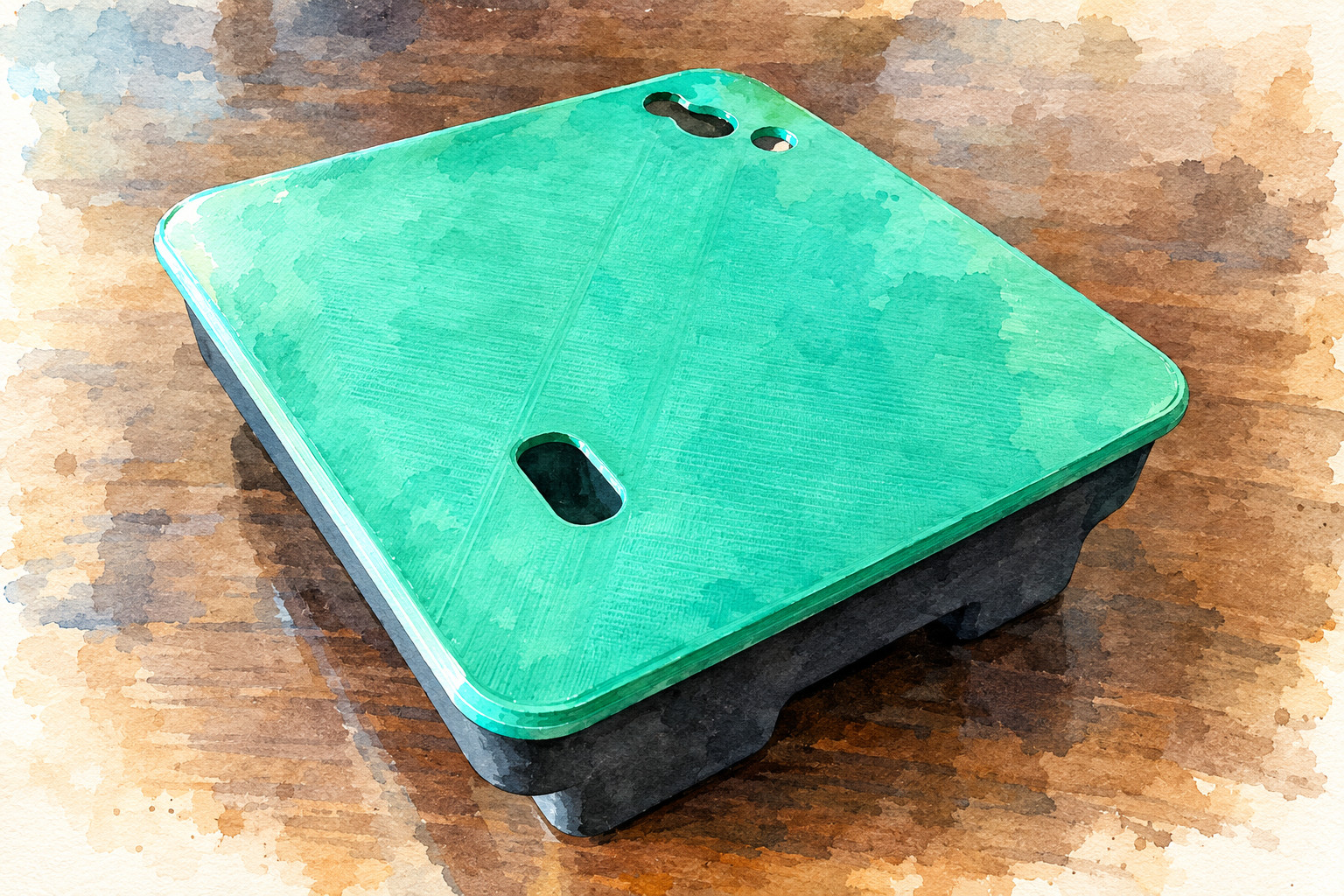

Ben's water tank lid

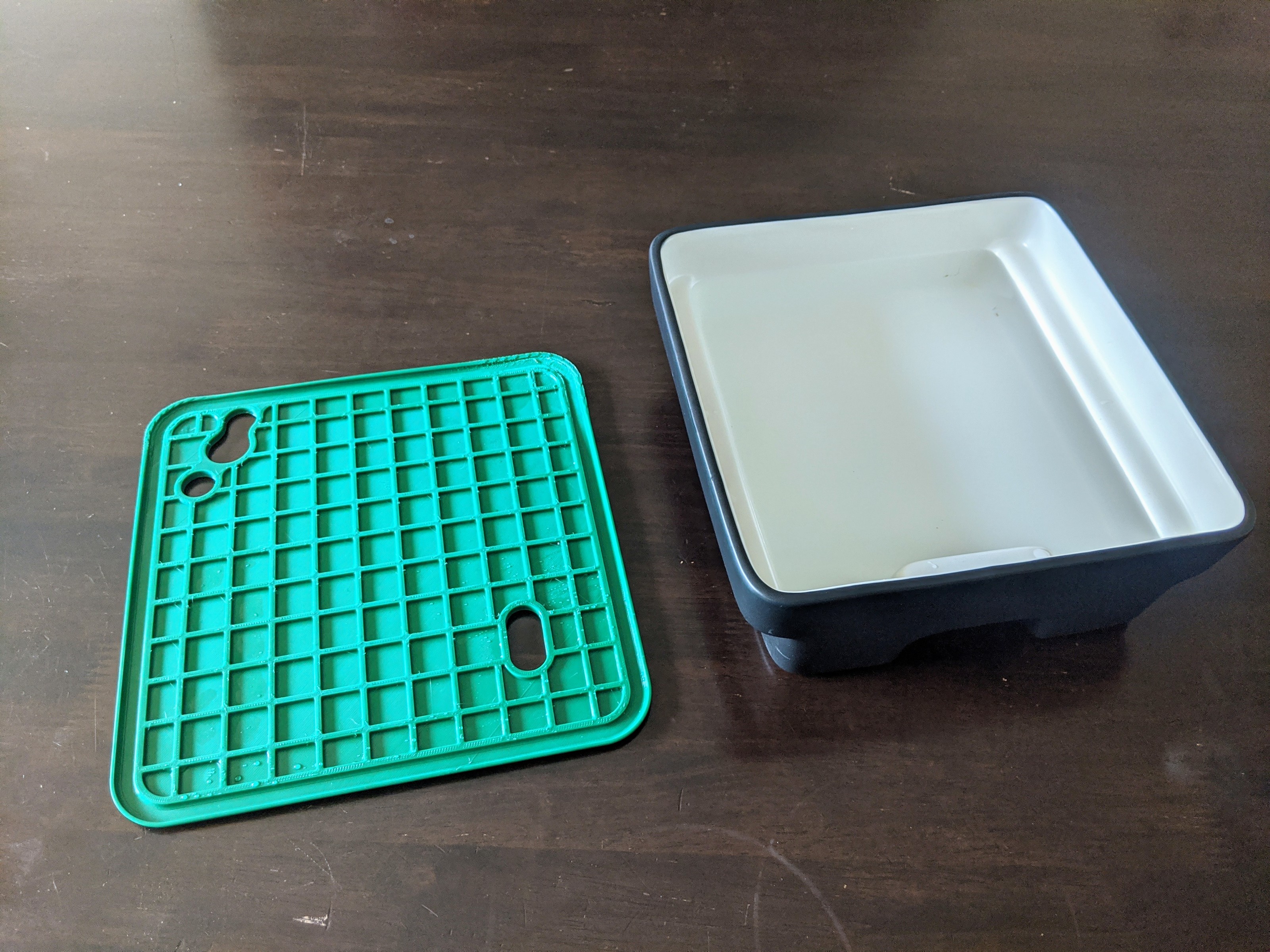

Water tank lid from the other side

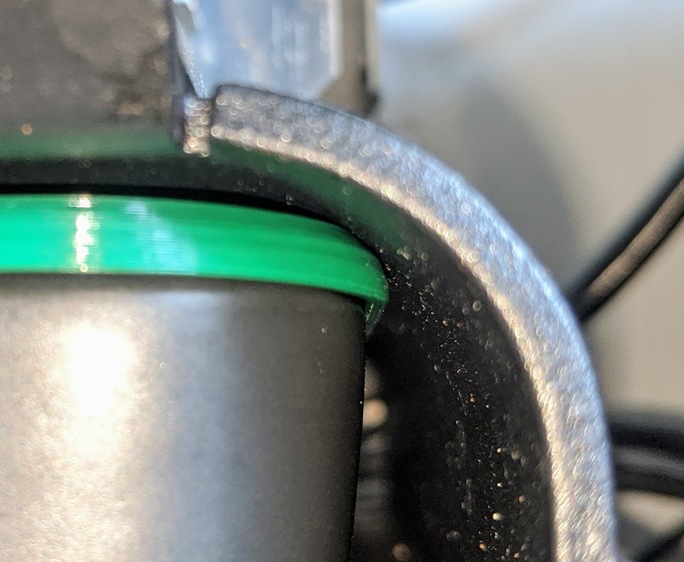

Water tank from the back

Water tank from the back

#DE1 #pimpyourDE1 #lid #accessories
