Drawings of the back panels

Below, you'll find the drawings of the DE1 back panels so that you can 3D print or otherwise make your own.

DE1PRO

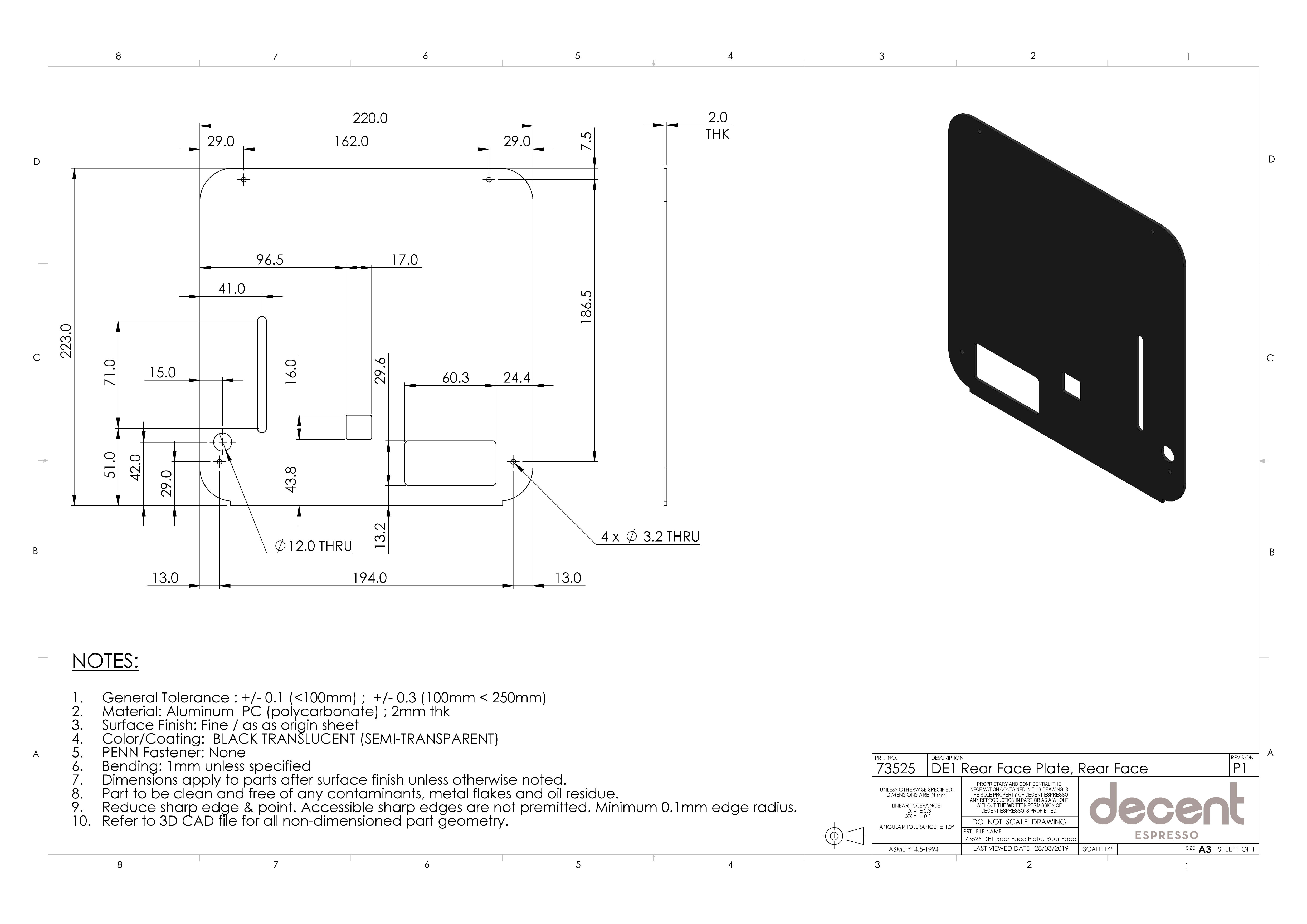

Drawings of the DE1PRO back panel

PDF of the drawings of the DE1PRO back panel

DE1XL

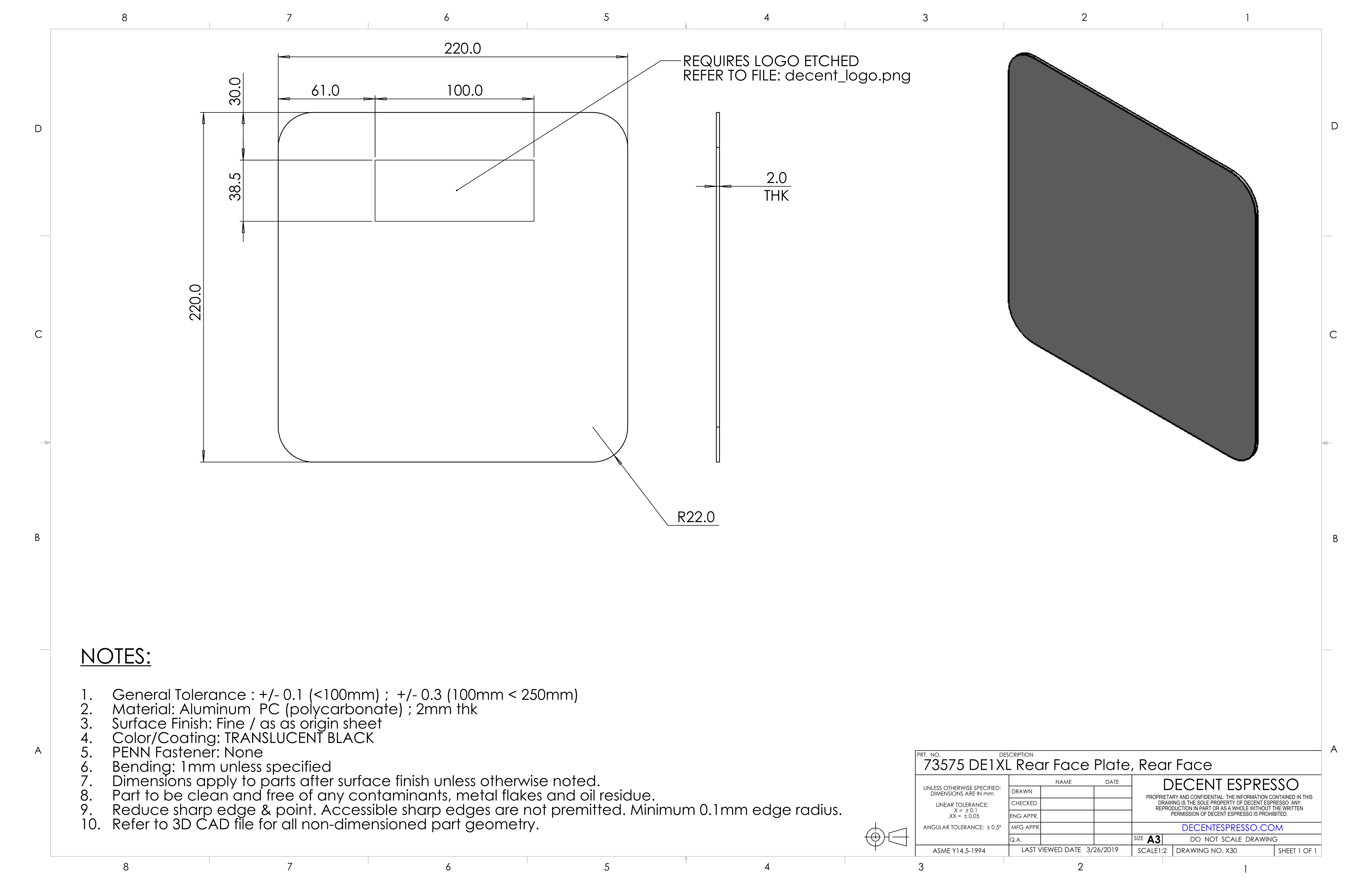

Drawings of the back panel of the DE1XL

PDF of the drawings of the back panel of the DE1XL

#drawings #documentation #opensource #open
