Programmer's Overview of Decent

First page of John's presentation

In 2019

I presented here and 13,000 people watched!

What is this?

an espresso machine built from scratch

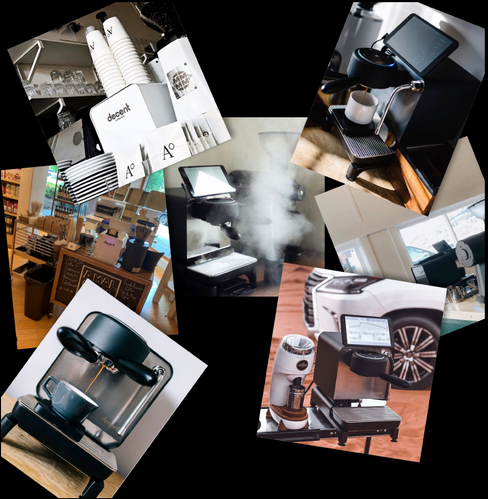

Espresso machines

Why?
  • because espresso was pre-scientific
  • espresso machines were hard wired for one approach only

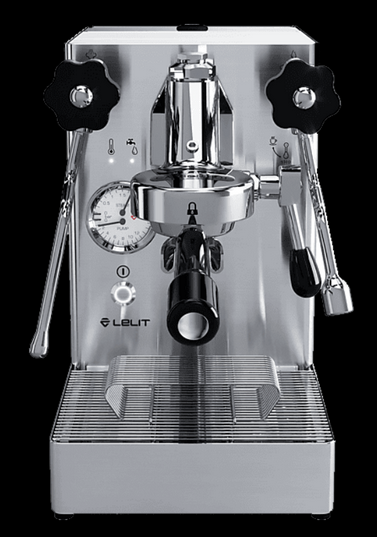

    • Espresso machine

    So? What to do?

    Sensors were needed to capture real data

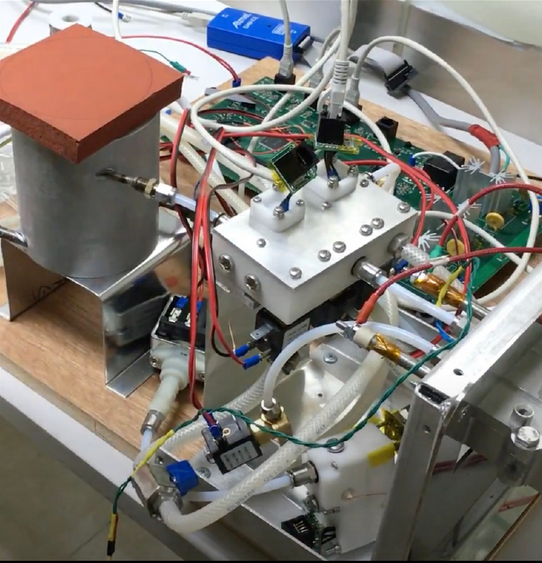

    Inner parts of an espresso machine

    An app was needed to display data neutrally and truthfully

    The DE1app

    Programming espresso shots

    a visual espresso-programming tool to encourage experimentation

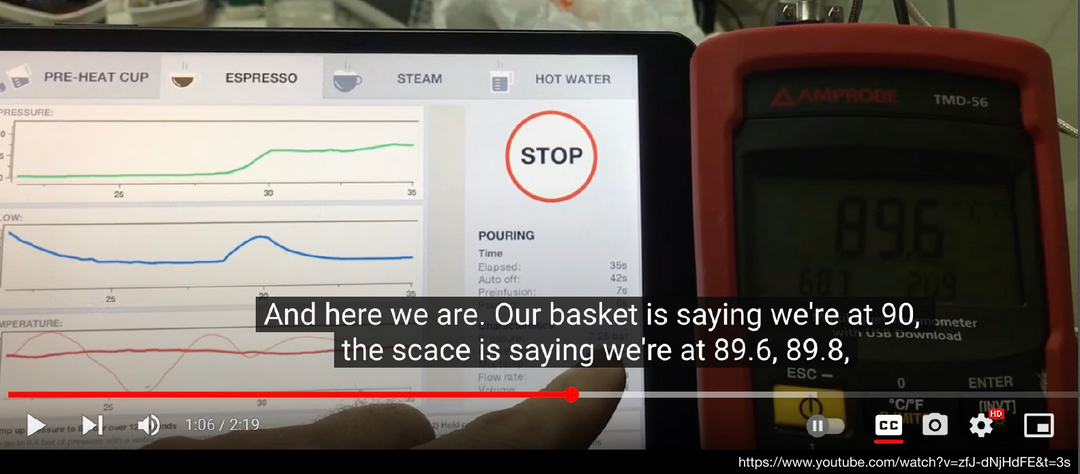

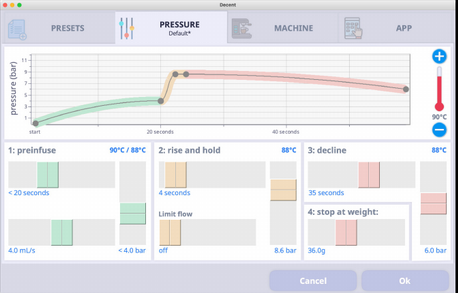

    View on the DE1app
    View on extended parameters of the DE1app

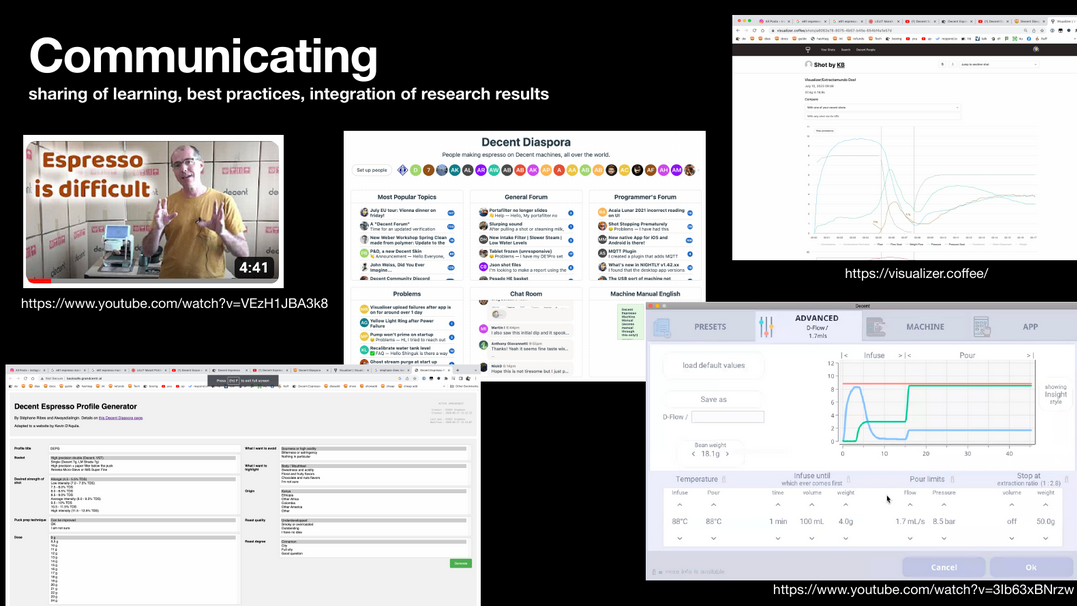

    Communicating

    sharing of learning, best practices, integration of search results

    8th page of John's presentation

    Simplifying & Sharing

    Distribution of what was learnt to non-experts

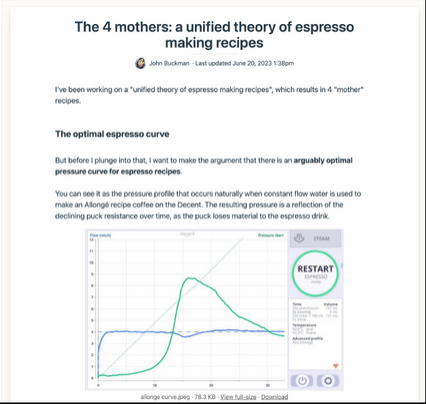

    Blog post by John

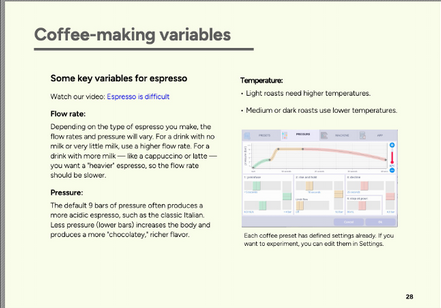

    Page of the Quickstart guide
    Another page of the Quickstart guide

    Tolerance for imperfection

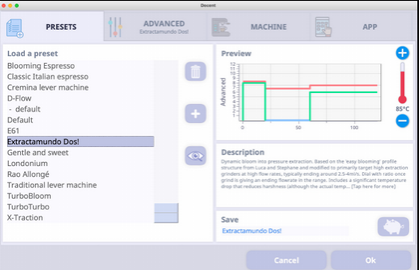

    View of a profile in the DE1app
    View of a profile in the DE1app
    View of a profile in the DE1app

    a UI was needed to display the data neutrally and truthfully

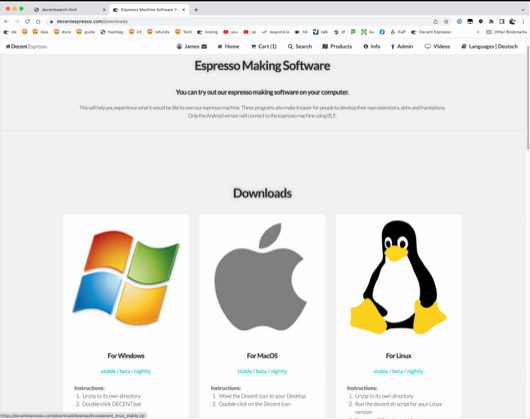

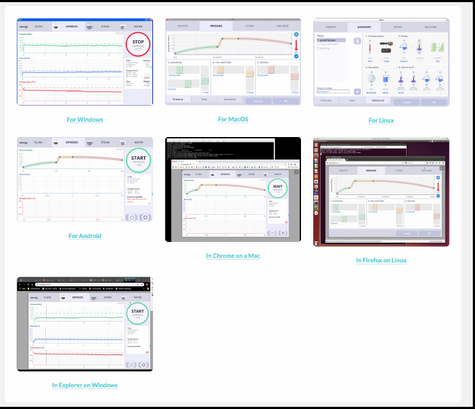

    The download page on the Decent website

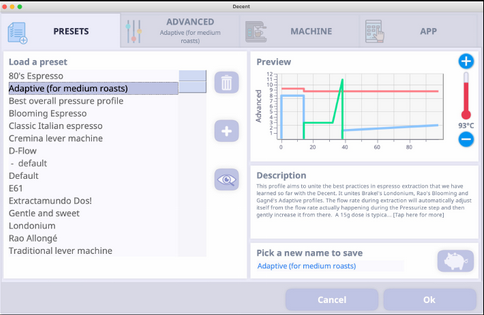

    Different profiles

    DUI widgets library

    by Enrique Bengoechea

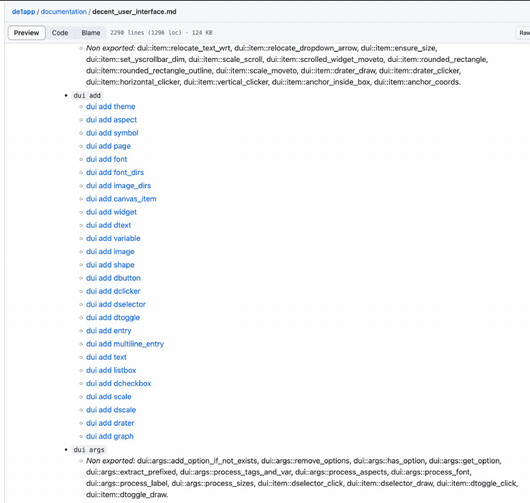

    Enrique's DUI widgets library

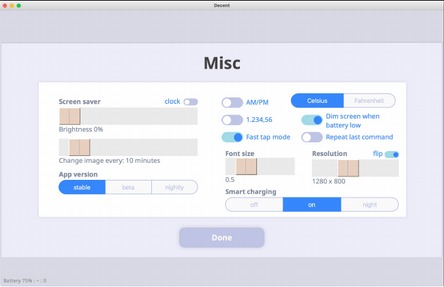

    Native-looking widgets

    Native-looking widget, light mode
    Native-looking widget, dark mode

    App Extensions

    14th page of John's presentation

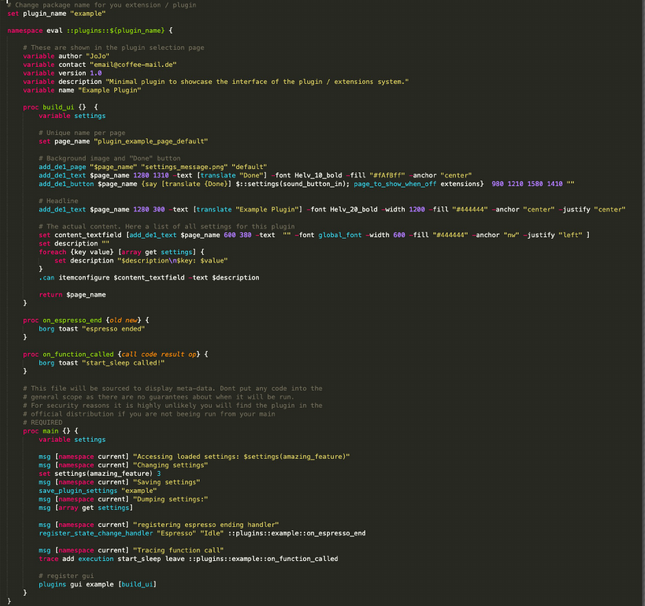

    App Extensions Example

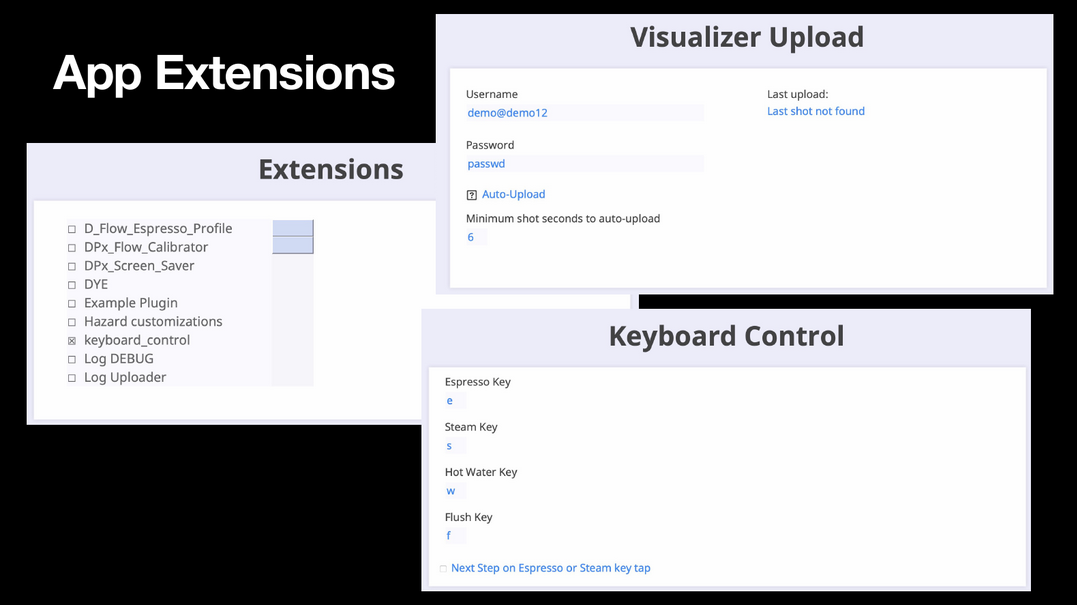

    App extensions example

    Easily make new UIs

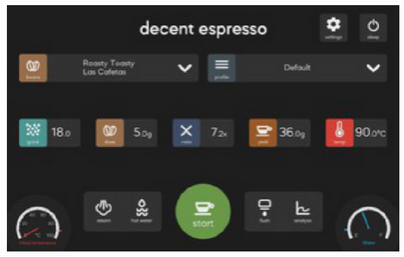

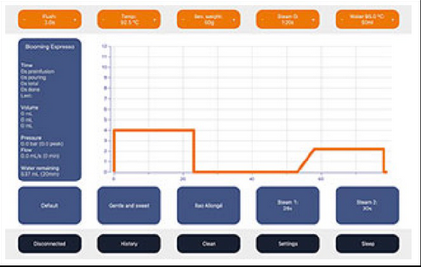

    Example UI

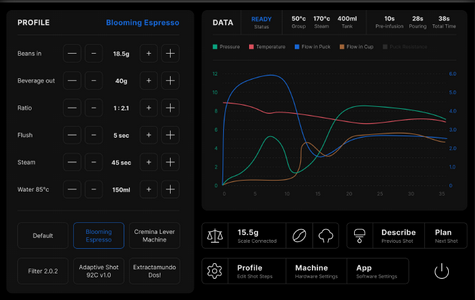

    Streamline Skin

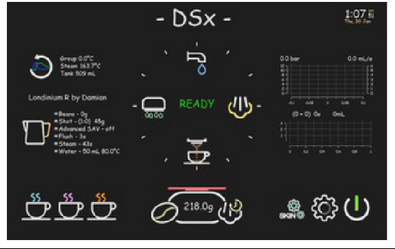

    Damian's DSX skin

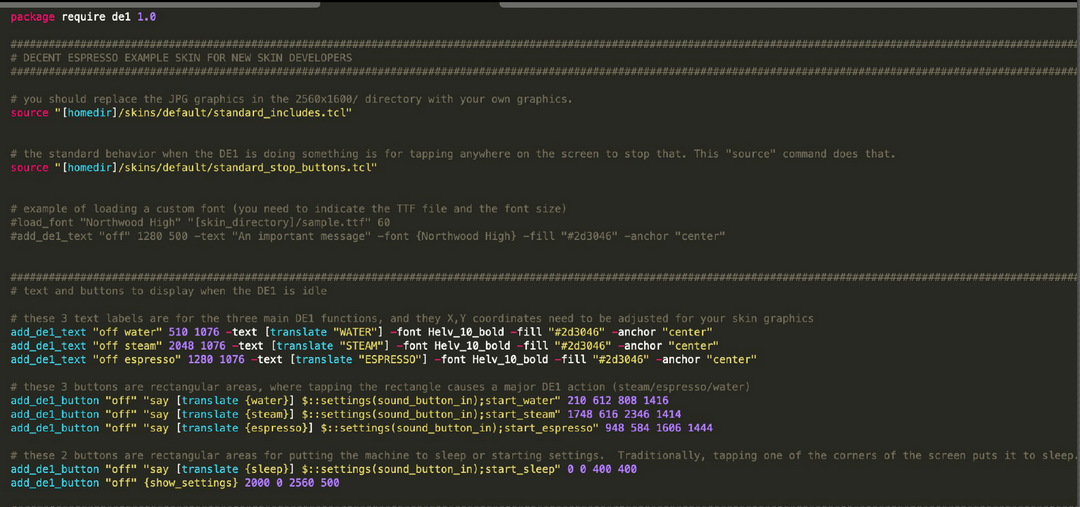

    Sample Skin

    An example skin

    Skin writing extensions

    Screen Variables are Tk text widgets that refresh

    add_de1_variable "steam_1" 537 1250 -text "" -font Helv_10_bold -fill $tappable_text_color -anchor "center" -textvariable {[seconds_text $::settings(steam_timeout)]}

    Mechanism for any Tk widget

    # 3 equal sized charts add_de1_widget "off espresso espresso_1 espresso_2 espresso_3" graph 20 267 { bind $widget [platform_button_press] { say [translate {zoom}] $::settings(sound_button_in);

    An Over-the-air update mechanism

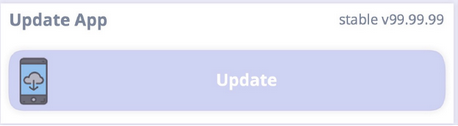

    Update button

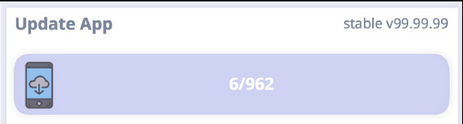

    Update button with update in progress

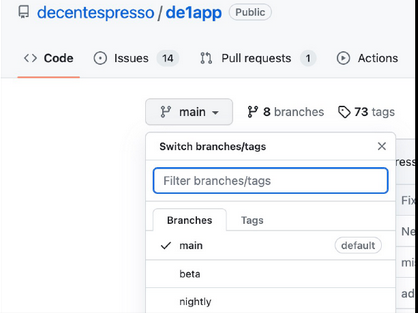

    App versions button
    The app directory

    Challenges
  • shipping the same app on Android, Windows, OSX and Linux
  • converting the Tcl app into a WebApp using mp4 streaming
  • what kind of people embraced Tcl and why
  • what kind of people hated Tcl, why, and what happened then
  • the move from open-source-but-one-programmer to a full open source multi-programmer participation via Github and relinquishing control
  • challenges of supporting many different resolutions, tablets and Android versions
  • Right-to-left languages

    • Future
  • Surprising findings how Tcl outperforms competing other programs (in other languages) trying to do similar things
  • What hasn't turned out well, and what we're trying to do about it. Bluetooth is our main problem.
  • The future of Tcl for us, as Python, Javascript, as others launch competing apps
  • Cloud integration
  • Two apps at once: point-of-sale and order queue management. Mobile-ordering app. iOS via webapp/mp4.

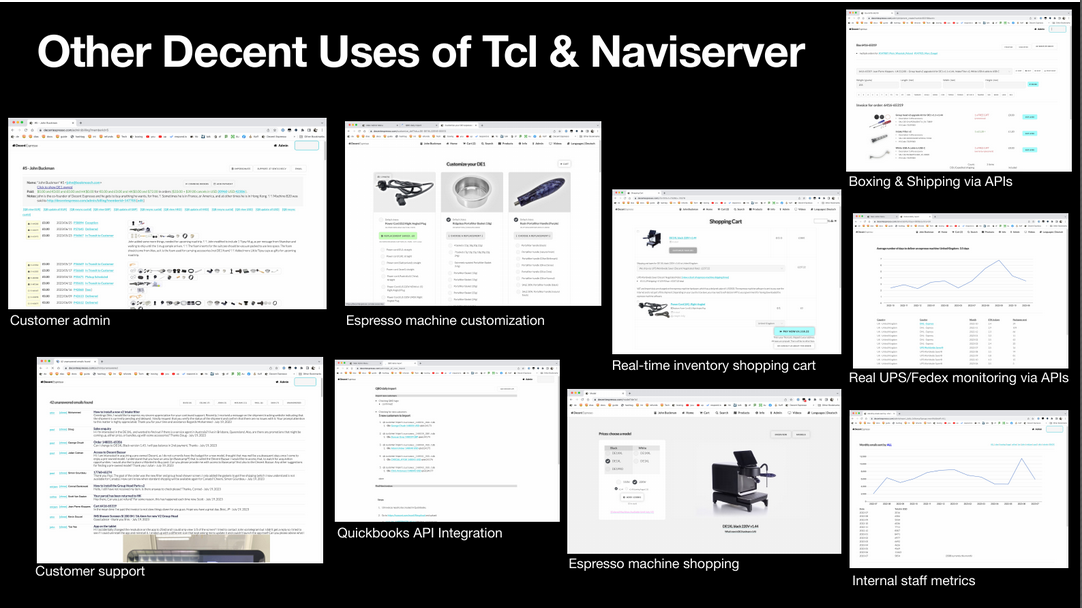

    • Other Decent Uses of Tcl & Naviserver

    22nd page of John's presentation

    #presentation #app #programming #John
