Portafilter locking symmetry test



Youtube short

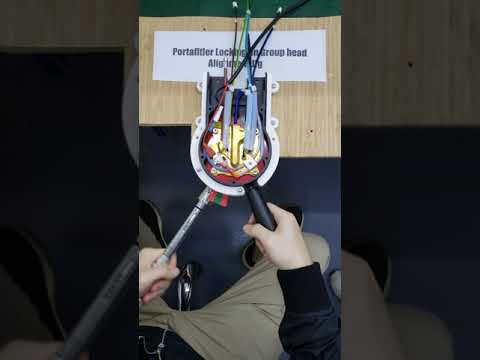

This is a jig we built to test that our portafilters lock symmetrically to the opposite wood handle. A number of sub-millimeter tolerance parts can change the locking point, not to mention “how hard to push” when locking it in. This way we're absolutely consistent, no matter who works on this.


I reported on this goal some time ago, but it's taken a while to design, debug and build. This model uses a torquing wrench which “gives up” at a certain strength.

Our v1.4 machines have each been taking about 30 minutes more to build, because the locking point of the portafilters was not consistent, due to a small variation in thickness on two different parts. We've had to disassemble each group head and re-assemble them with the right spacer (0.4mm 0.6mm 0.8mm) to get this alignment just right.

For our v1.42 machines, we're sending this jig to our CNC metal supplier, so that they can verify that all the parts they've made for us are exactly the right size, and we don't have to do this annoying rework.

#factory #testing


  • German: Symmetrieprüfung der Siebträgereinrastung

    Updated 2020/12/14
